CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Protection class III
REACH
RoHS
Series connection
Product number:
ALU53103

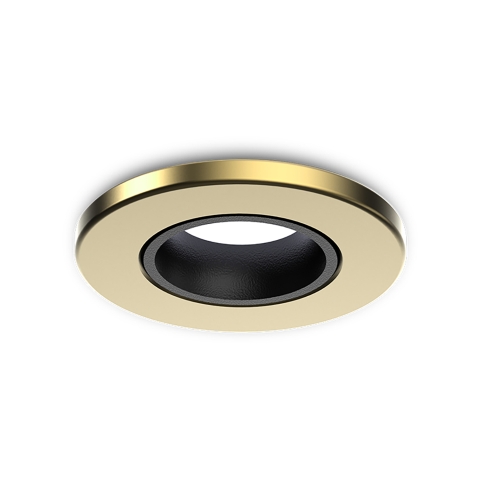

LD Spot 1W 300mA 30° 3000K gold
Product information "LD Spot 1W 300mA 30° 3000K gold"
- Spotlight for display case lighting, non-swivelling
- power: 1 W
- light colour: 3000 K
- luminous flux: 52 lm
- beam angle: 30°
- CRI: >90
- lifespan L70B50: >= 48,000 h
- power supply: 300 mA DC
- protection class III, IP20

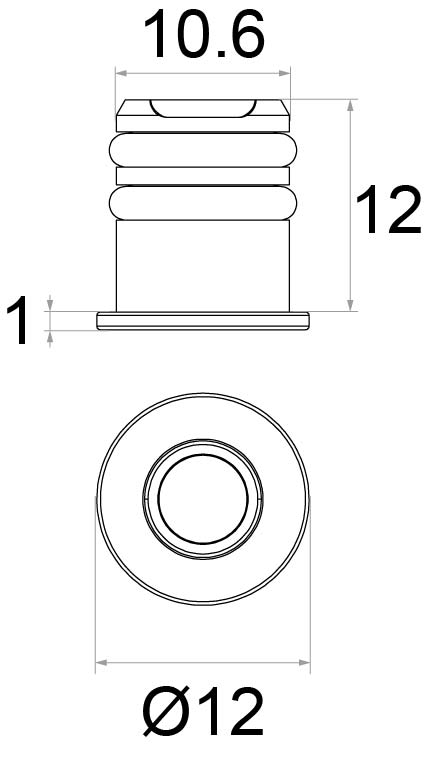

- diameter: 12 mm
- installation diameter: 10,5 mm
- height: 13 mm
Technical Data
| BAR code: | 4251835731034 |
|---|---|
| Height: | 13 mm |
| Unit Code: | piece |
| Installation diameter: | 10,5 mm |
| Outer diameter: | 12 mm |
| Lumen per fixture (lm): | 52 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 300 mA |
| Installation depth: | 12 mm |
| Temperature range: | -20 - 45 |
| Lumen per watt: | 52 |
| IP protection rating: | 20 |
| Power: | 1 W |
| CRI: | 90 |
| Catalog color code: | gold |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 30 Grad ° |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| LebensdauerL70B50: | 48000 |
| Ecodesign: | not relevant |
| Psb: | 0,00 |
