CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Protection class III
REACH
RoHS
Series connection
Product number:
73332-25

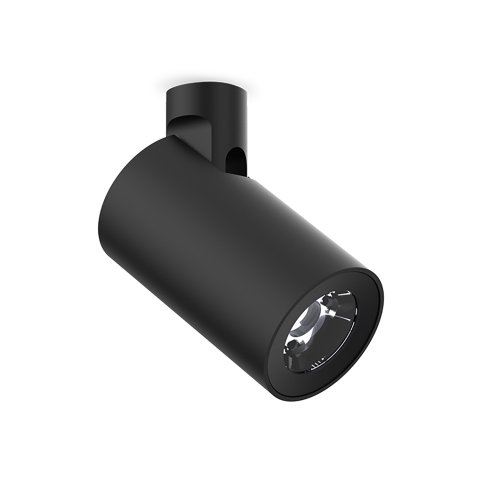

LD Showcase lights-spot 1W 300mA 25° 3000K black
Product information "LD Showcase lights-spot 1W 300mA 25° 3000K black"
- 90° adjustable spotlight for display case lighting, rotatable
- power: 1 W
- light colour: 3000 K
- luminous flux: 96 lm
- beam angle: 25°
- CRI: >90
- lifespan L70B50: >= 48,000 h
- power supply: 300 mA DC
- protection class III, IP20

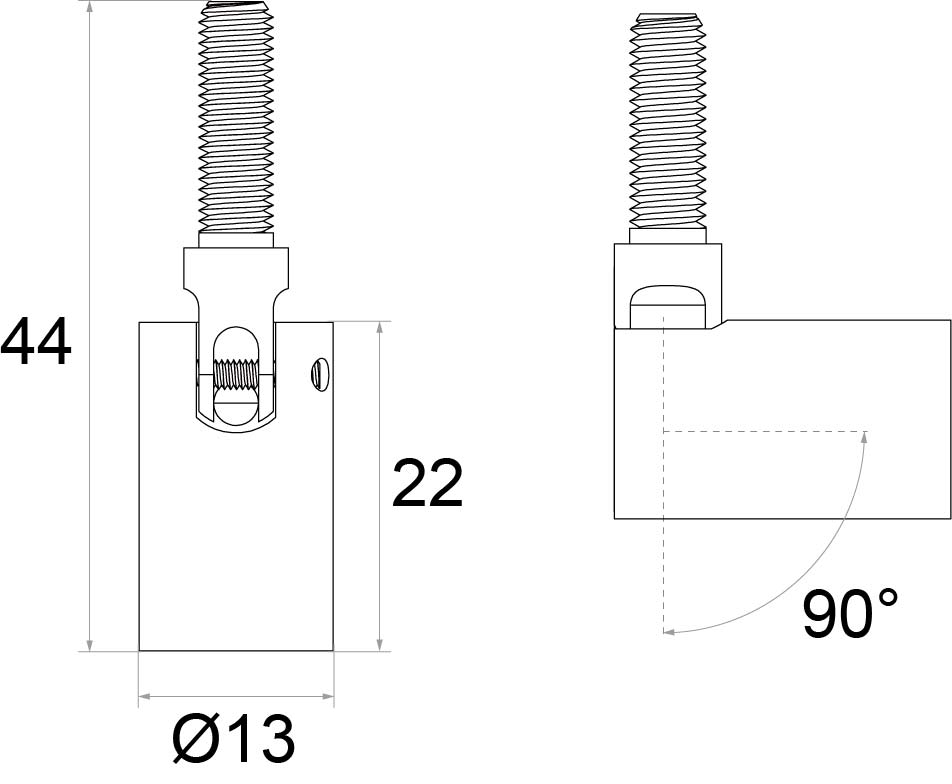

- diameter: 13 mm
- length: 22 mm
- installation diameter: 8 mm
- installation depth: 22 mm
- energy efficiency class: F
Technical Data
| BAR code: | 4251835733229 |
|---|---|
| Length: | 22 mm |
| Unit Code: | piece |
| Installation diameter: | 8 mm |
| Outer diameter: | 13 mm |
| Lumen per fixture (lm): | 96 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 300 mA |
| Installation depth: | 22 mm |
| Temperature range: | -20 - 45 |
| Lumen per watt: | 96 |
| IP protection rating: | 20 |
| Power: | 1 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 90 |
| Catalog color code: | schwarz |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 25 Grad ° |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| LebensdauerL70B50: | 48000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
