CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Protection class III
REACH
RoHS
Series connection
Product number:
71939-40
LD Showcase lights-bend 3W 350mA 20° 4000K haze
Product information "LD Showcase lights-bend 3W 350mA 20° 4000K haze"

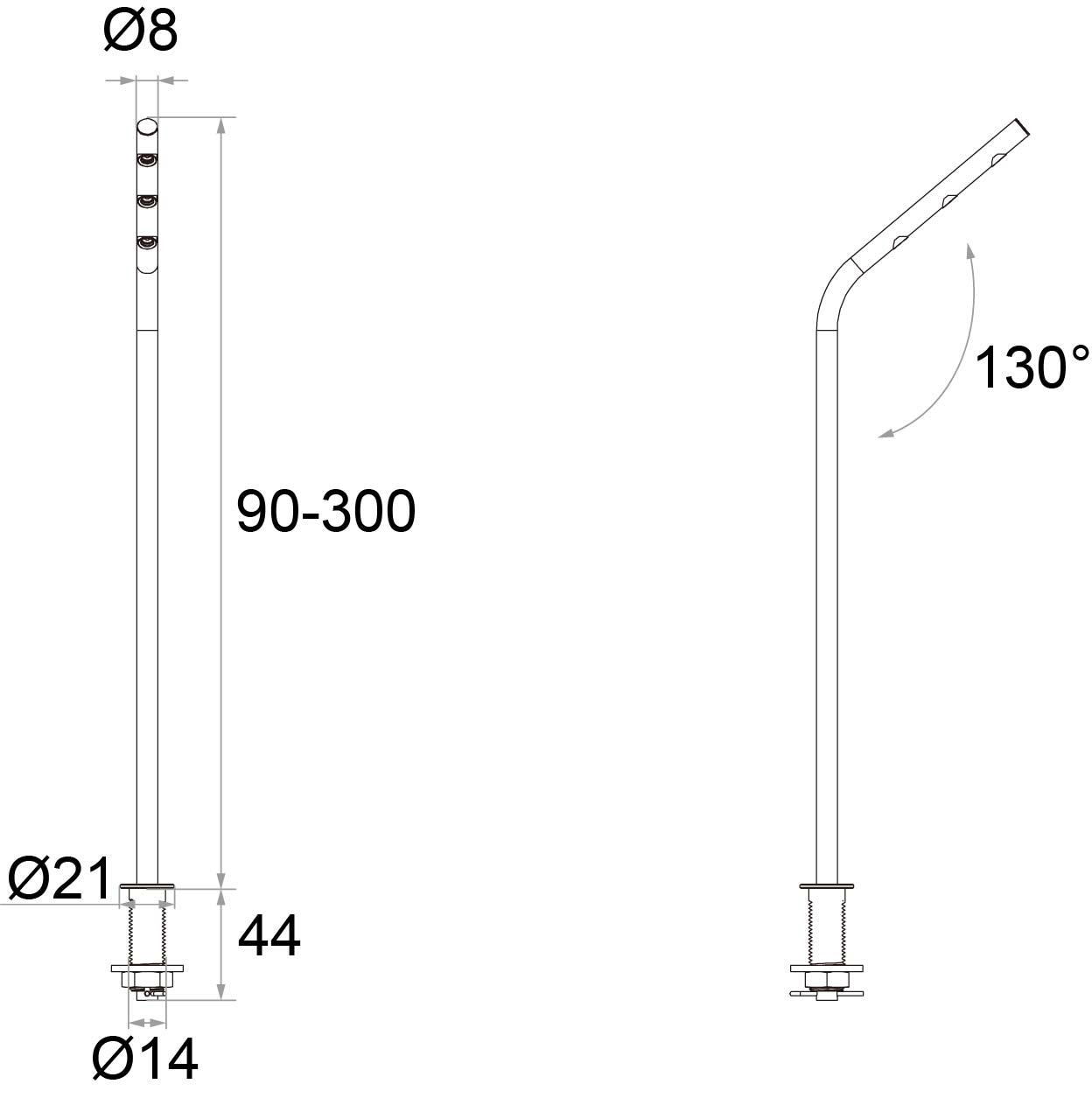

- 130° inclined aluminium pole light for display case lighting
- power: 3 W
- light colour: 4000 K
- luminous flux: 250 lm
- beam angle: 20°
- CRI: >90
- lifespan L70B50: >= 60.000 h
- power supply: 350 mA DC
- protection class III, IP20
- installation diameter: 14 mm
- diameter base: 21 mm
- diameter of pole: 8 mm
- height: 300 mm
- energy efficiency class: F
Technical Data
| BAR code: | 4251835793940 |
|---|---|
| Height: | 300 mm |
| Unit Code: | piece |
| Installation diameter: | 14 mm |
| Outer diameter: | 21 mm |
| Lumen per fixture (lm): | 250 lm |
| Lumen per LED (lm): | 83,33 lm |
| Current: | 350 mA |
| Installation depth: | 44 mm |
| Temperature range: | -20 - 35 |
| Lumen per watt: | 83,33 |
| IP protection rating: | 20 |
| Power: | 3 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 90 |
| Catalog color code: | chrom matt |
| Led color code: | ca. 4000K neutralweiß |
| Leuchte: | including LED |
| Beam angle: | 20 Grad ° |
| Anzahl led: | 3 |
| Gehaeuse code: | Aluminium |
| LebensdauerL70B50: | 60000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
