CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Protection class III
REACH
RoHS
Series connection
Product number:
71872-40
LD Showcase lights-Goal dot 9,6W 500mA 20° 4000K black
Product information "LD Showcase lights-Goal dot 9,6W 500mA 20° 4000K black"

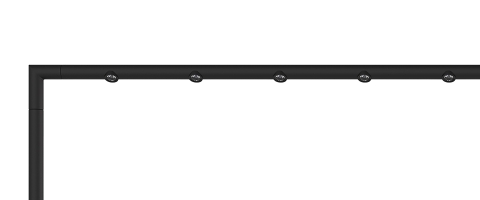

- Straight aluminium pole light for display case lighting
- number of LED: 12
- power: 9.6 W
- light colour: 4000 K
- luminous flux: 1020 lm
- beam angle: 20°
- CRI: >90
- lifespan L70B50: >= 60,000 h
- power supply: 500 mA DC
- protection class III, IP20

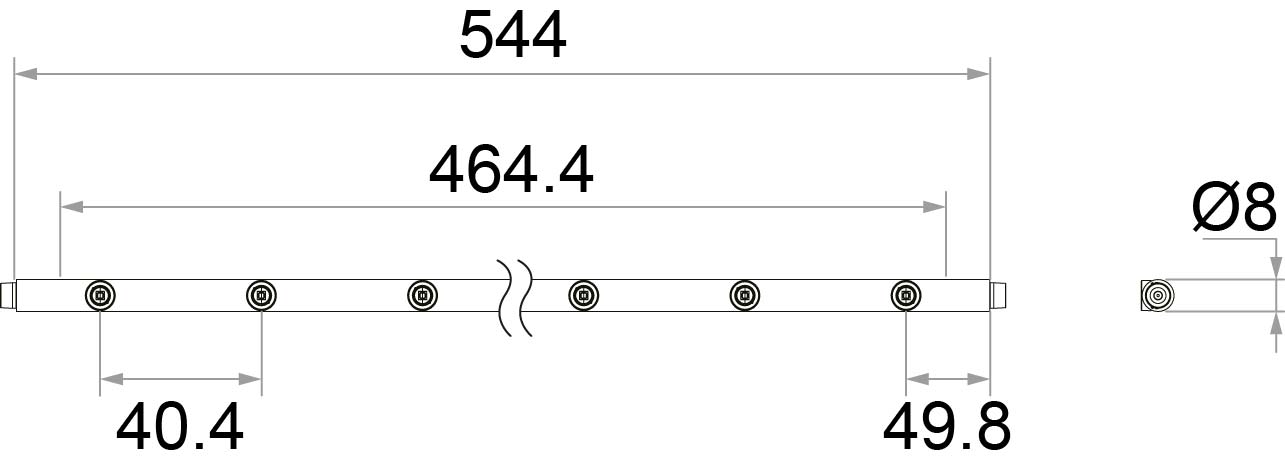

- diameter of pole : 8 mm
- Length: 544 mm
- energy efficiency class: E
Technical Data
| BAR code: | 4251835787246 |
|---|---|
| Length: | 544 mm |
| Unit Code: | piece |
| Outer diameter: | 8 mm |
| Lumen per fixture (lm): | 1020 lm |
| Lumen per LED (lm): | 85,00 lm |
| Current: | 500 mA |
| Temperature range: | -20 - 35 |
| Lumen per watt: | 106,25 |
| IP protection rating: | 20 |
| Power: | 9,6 W |
| Energy efficiency class: | EEK-Label_E |
| CRI: | 90 |
| Catalog color code: | schwarz |
| Led color code: | ca. 4000K neutralweiß |
| Leuchte: | including LED |
| Beam angle: | 20 Grad ° |
| Anzahl led: | 12 |
| Gehaeuse code: | Aluminium |
| Re skus: | 71990,71991 |
| LebensdauerL70B50: | 60000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
