CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Protection class III
REACH
RoHS
Series connection
Product number:
73320

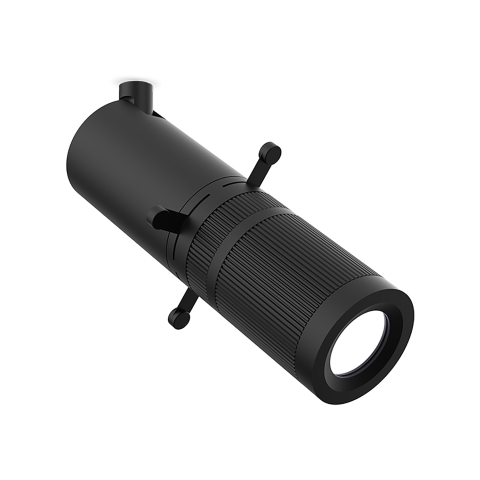

LD Showcase Spot-framing 3W 700mA 3000K black
Product information "LD Showcase Spot-framing 3W 700mA 3000K black"

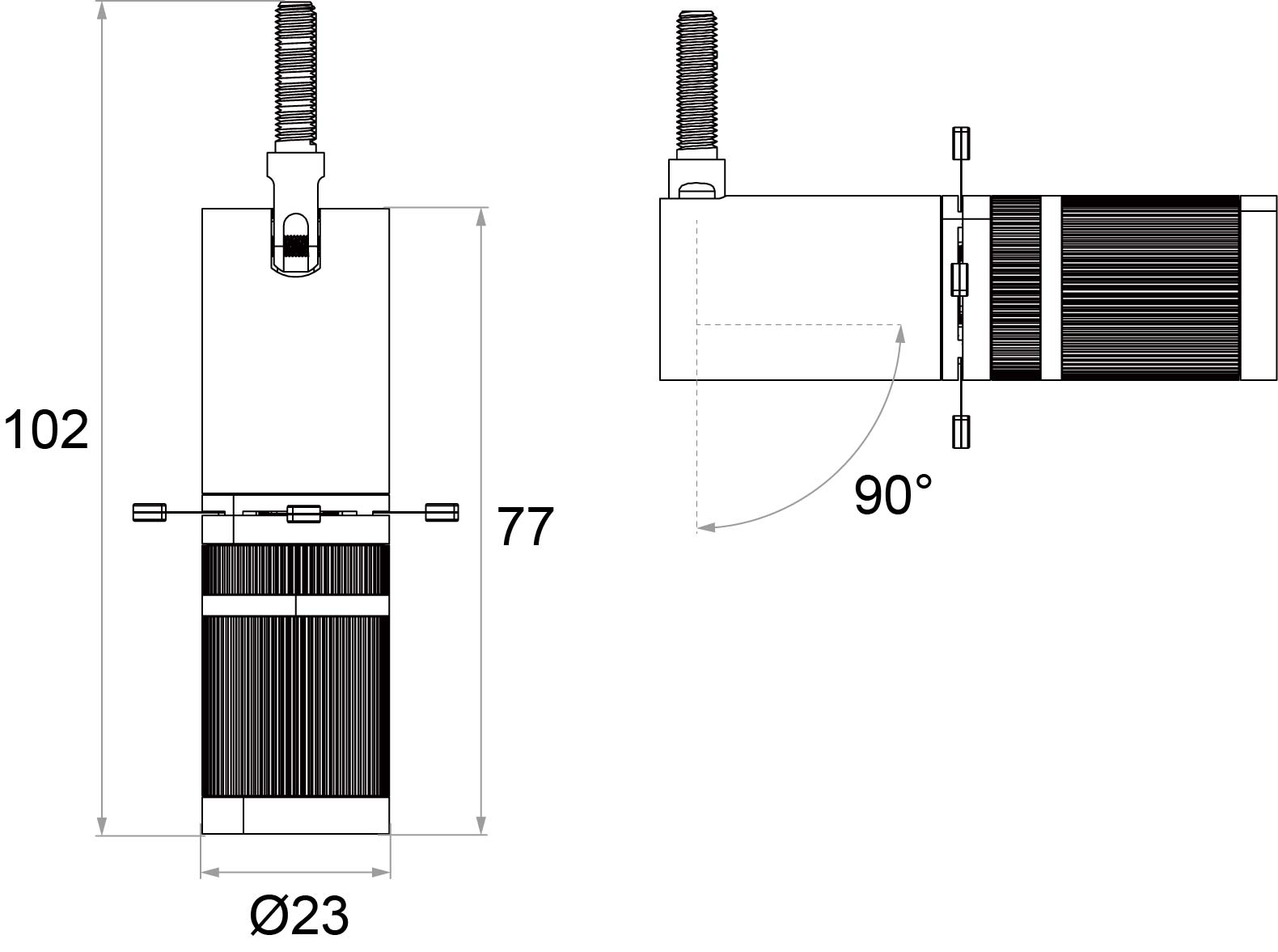

- 90° adjustable spotlight for display case lighting, rotatable
- power: 3 W
- light colour: 3000 K
- luminous flux: 193 lm
- beam angle: 18-35° adjustable
- CRI: >90
- lifespan L70B50: >= 26,000 h
- power supply: 700 mA DC
- protection class III, IP20
- diameter: 23 mm
- length: 77 mm
- installation diameter: 8 mm
- installation depth: 25 mm
- energy efficiency class: G
Technical Data
| BAR code: | 4251835733205 |
|---|---|
| Length: | 77 mm |
| Unit Code: | piece |
| Installation diameter: | 8 mm |
| Outer diameter: | 23 mm |
| Lumen per fixture (lm): | 193 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 700 mA |
| Installation depth: | 25 mm |
| Temperature range: | -20 - 45 |
| Lumen per watt: | 64,33 |
| IP protection rating: | 20 |
| Power: | 3 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 90 |
| Catalog color code: | schwarz |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 18-35 Grad ° |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| LebensdauerL70B50: | 26000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
