CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
REACH
RoHS
Product number:
73402-40

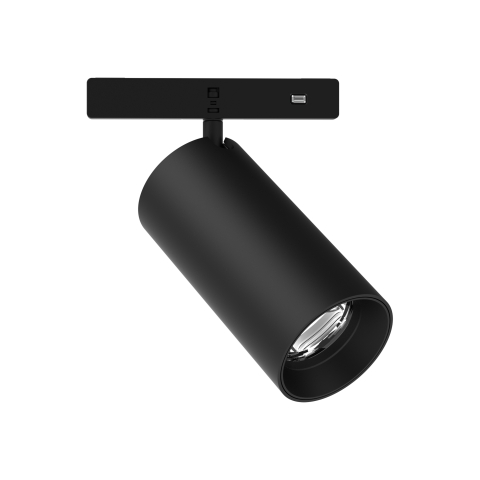

LD Showcase Spot 6,5W 24VDC 24° 4000K black
Product information "LD Showcase Spot 6,5W 24VDC 24° 4000K black"
- 90° angle-adjustable track spotlight for display case lighting, rotatable
- power: 6.5 W
- light colour: 4000 K
- luminous flux: 815 lm
- beam angle: 24°
- CRI: >90
- lifespan: L70B50: >= 108,000 h
- power supply: 24 V DC
- protection class III, IP20

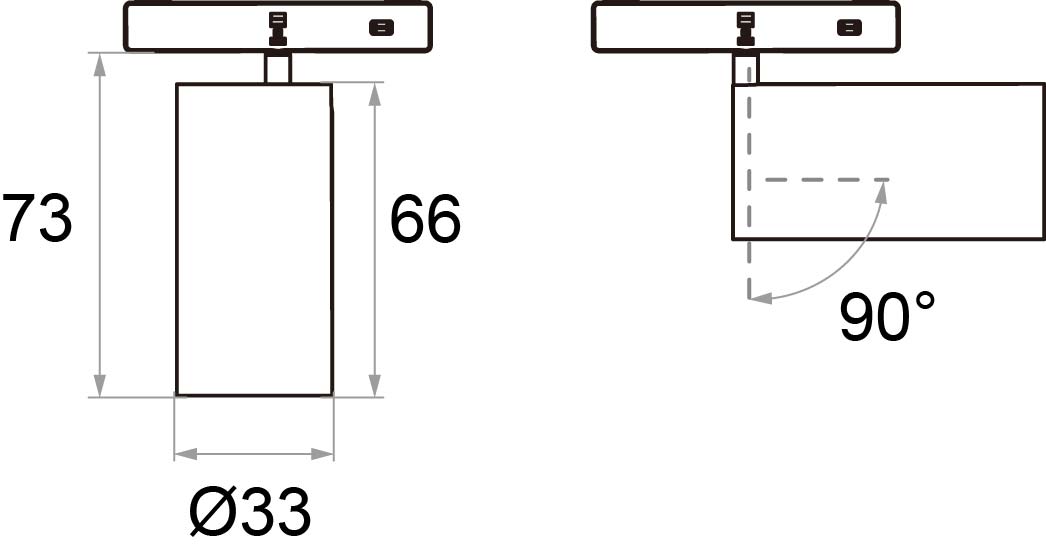

- diameter: 33 mm
- length: 66 mm
- energy efficiency class: D
Technical Data
| BAR code: | 4251835740241 |
|---|---|
| Length: | 73 mm |
| Unit Code: | piece |
| Outer diameter: | 33 mm |
| Lumen per fixture (lm): | 815 lm |
| Lumen per LED (lm): | 0,00 lm |
| Temperature range: | -20 - 45 |
| Lumen per watt: | 125,38 |
| IP protection rating: | 20 |
| Power: | 6,5 W |
| Energy efficiency class: | EEK-Label_D |
| CRI: | 90 |
| Catalog color code: | schwarz |
| Led color code: | ca. 4000K neutralweiß |
| Leuchte: | including LED |
| Beam angle: | 24 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| Re skus: | 73022,73092 |
| LebensdauerL70B50: | 108000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
