Product number:
S76666

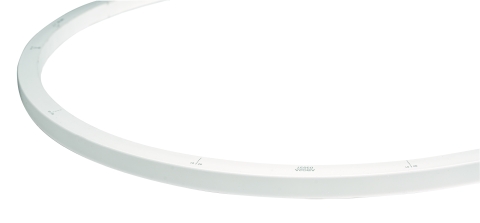

LD ST-?? Flex.LEDStrip,24V,RGBW-2700K
Product information "LD ST-?? Flex.LEDStrip,24V,RGBW-2700K"
- Flexible LED-Strip sealed in UV, chlorine, salt water
- and solvent-resistant white silicone
- for indoor- and outdoor use, IP66
- cuttable every 100 mm or 14 LED
- number of LED per metre: 140
- LED pitch: 7.14 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter: 366 lm
- power per meter: 9 W
- lifespan L70B50: >= 36,000 h

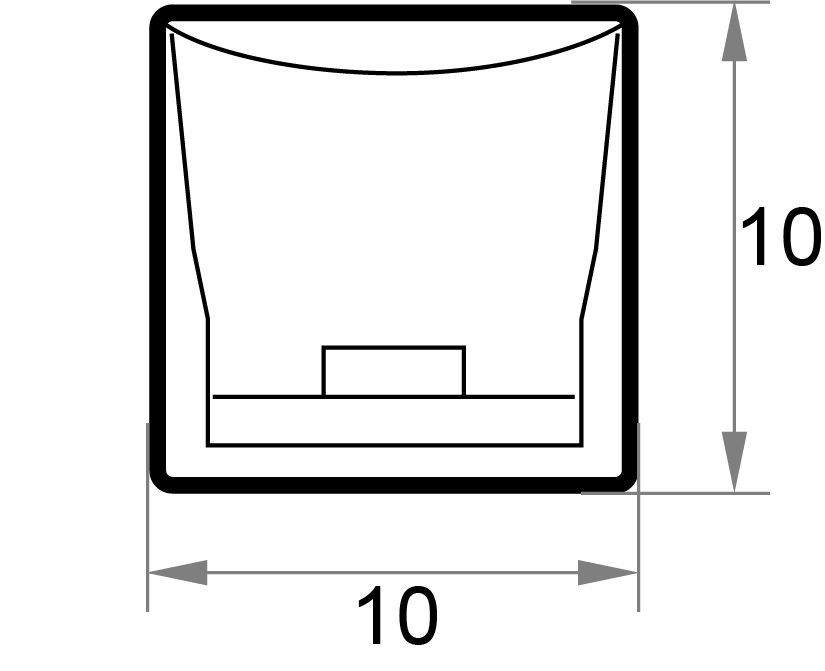

- WxH in mm: 10 x 10
- temperature range: -40 bis +60°C
- processing temperature: +10 bis +60°C
- maximum length per connection: 5 metres
- bending radius vertically: 50 mm
Technical Data
| BAR code: | 4012094666662 |
|---|---|
| Width: | 10 mm |
| Height: | 10 mm |
| Unit Code: | meter |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 0,00 lm |
| Temperature range: | -40 - 55 |
| LEDs per meter: | 140 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 9 |
| Lumen per meter: | 366 |
| Lumen per watt: | 40,67 |
| IP protection rating: | 66 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | RGBW 2700K |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| Re skus: | 68372,68373,68375,68378 |
| Auslaufartikel: | Yes |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
