Product number:
S71693
LD ST-EK Flex.LEDStrip,24V,UWW
Product information "LD ST-EK Flex.LEDStrip,24V,UWW"
- flexible LED Stripe sealed in UV- and
- saltwater resistant white silicone
- for indoor- and outdoor use, IP65
- cuttable every 25 mm / 7 LEDs
- amount of LEDs per meter: 280
- LED pitch: 3.57 mm
- beam angle: 120°
- CRI: >90
- luminous flux per meter: 430 lm
- power per meter: 7.2 W
- lifetime L70B50: >= 36.000 h

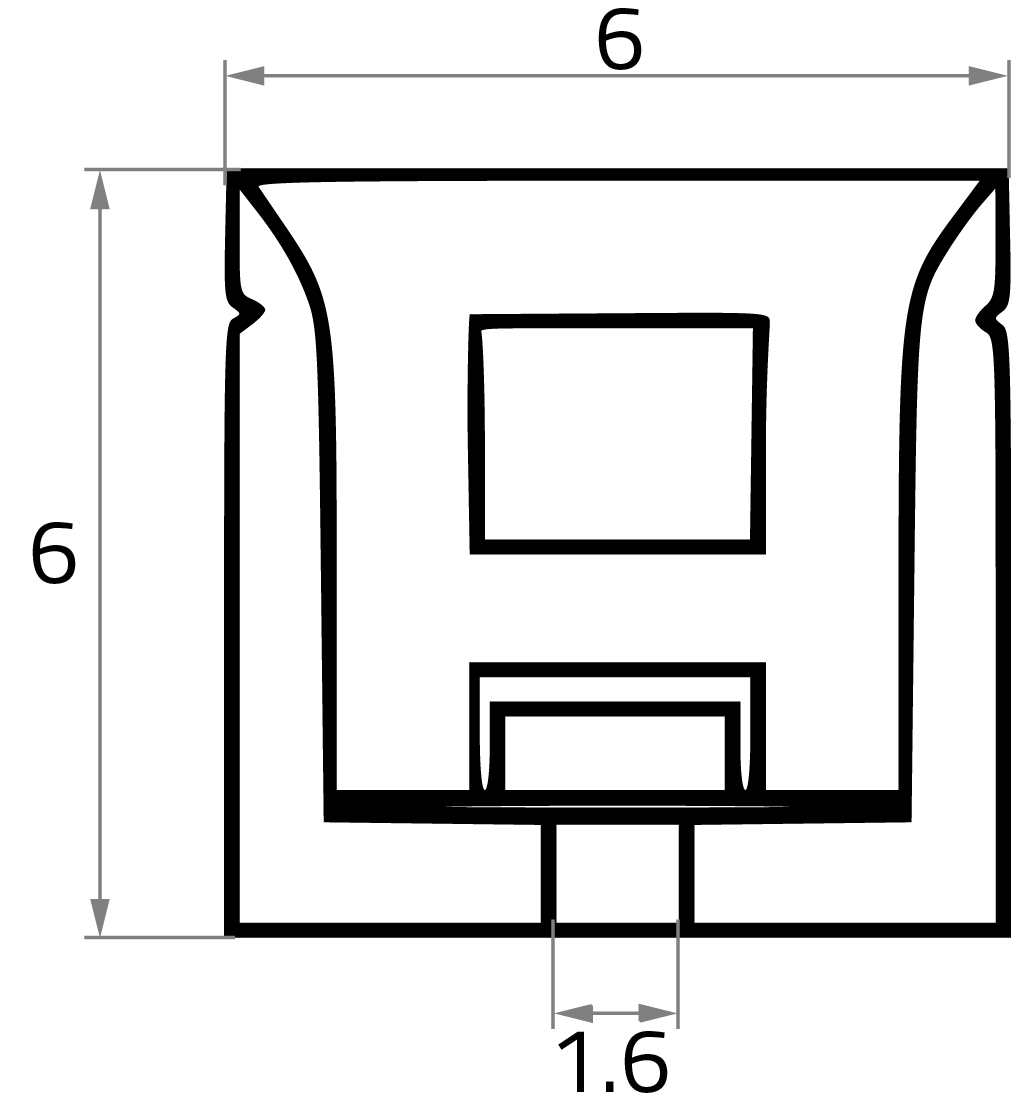

- LxWxH in mm: 5,000 x 6 x 6
- temperature range: -30 to +45°C
- processing temperature: +10 to +45°C
- maximum length per connection: 5 meter
- bending radius vertical: 20 mm
Technical Data
| BAR code: | 4012094716930 |
|---|---|
| Width: | 6 mm |
| Height: | 6 mm |
| Length: | 5000 mm |
| Unit Code: | meter |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 2150 lm |
| Lumen per LED (lm): | 1,53 lm |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 280 |
| Cutting length in mm: | 25 mm |
| Power W/m: | 7,2 |
| Lumen per meter: | 430 |
| Lumen per watt: | 59,72 |
| IP protection rating: | 65 |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 1400 |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
| Psb: | 0,0 |
