CE
Disposal instructions according to 2012/19/EU
Interseroh
Light source not interchangeable
Parallel connection
Protection class III
REACH
RoHS
UV-resistant
Product number:
S71683
LD ST-EK Flex.LEDStrip,24V,UWW
Product information "LD ST-EK Flex.LEDStrip,24V,UWW"
- flexible LED Stripe sealed in UV- and
- saltwater resistant white silicone
- for indoor- and outdoor use, IP67
- cuttable every 41.67 mm / 7 LEDs
- amount of LEDs per meter: 168
- LED pitch: 5.95 mm
- beam angle: 120°
- CRI: >90
- luminous flux per meter: 196 lm
- power per meter: 7.2 W
- lifetime L70B50: >= 36.000 h

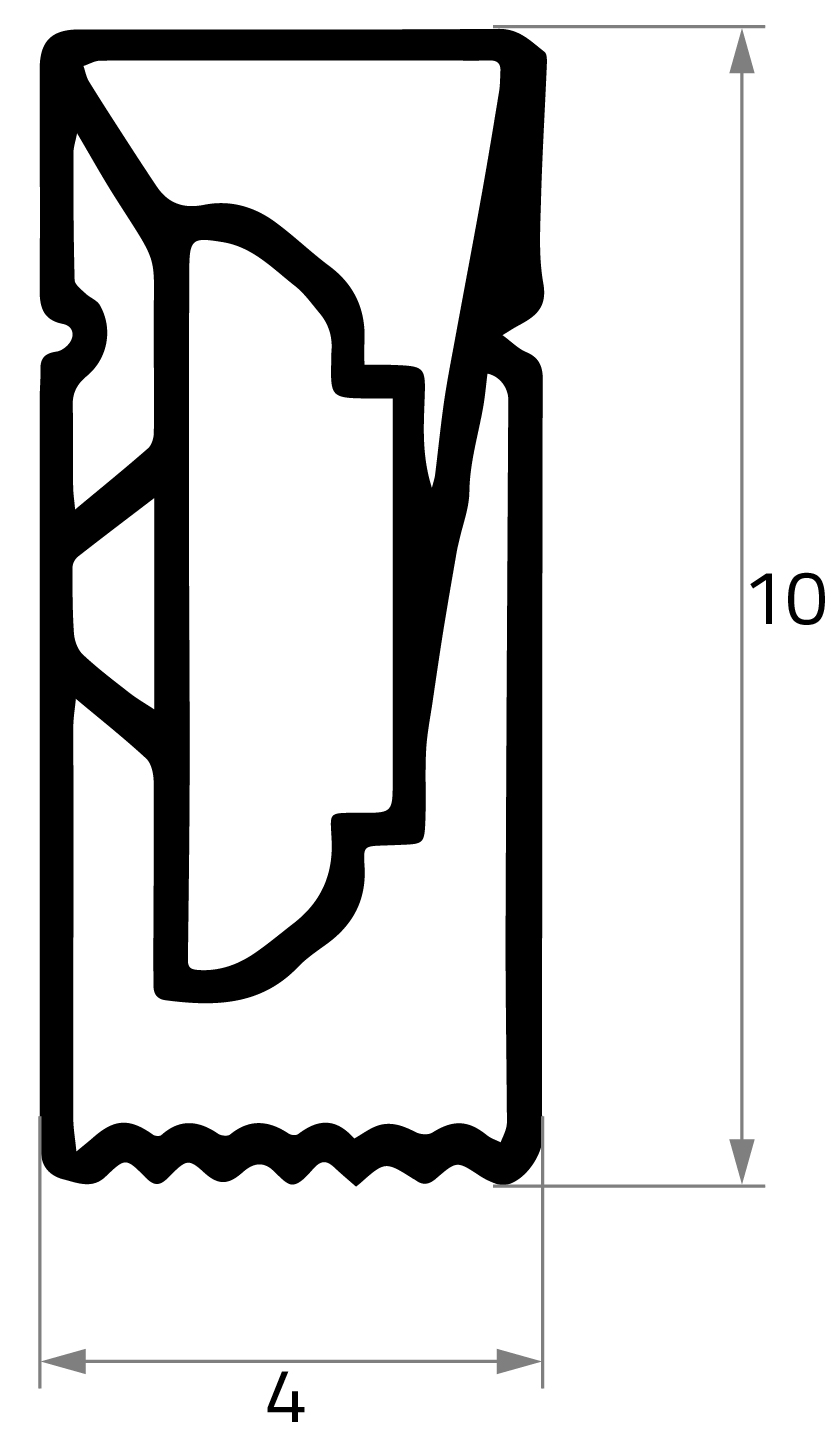

- LxWxH in mm: 5,000 x 4 x 10
- temperature range: -30 to +55°C
- processing temperature: +10 to +55°C
- maximum length per connection: 5 meter
- bending radius horizontal: 15 mm
Technical Data
| BAR code: | 4012094716831 |
|---|---|
| Width: | 4 mm |
| Height: | 10 mm |
| Length: | 5000 mm |
| Unit Code: | meter |
| Lumen per fixture (lm): | 980 lm |
| Lumen per LED (lm): | 1,17 lm |
| Temperature range: | -30 - 55 |
| LEDs per meter: | 168 |
| Cutting length in mm: | 41,67 mm |
| Power W/m: | 7,2 |
| Lumen per meter: | 196 |
| Lumen per watt: | 27,22 |
| IP protection rating: | 67 |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 840 |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
| Psb: | 0,0 |
