CE
Disposal instructions according to 2012/19/EU
Interseroh
Light source not interchangeable
Parallel connection
Protection class III
REACH
RoHS
UV-resistant
Product number:
S76873

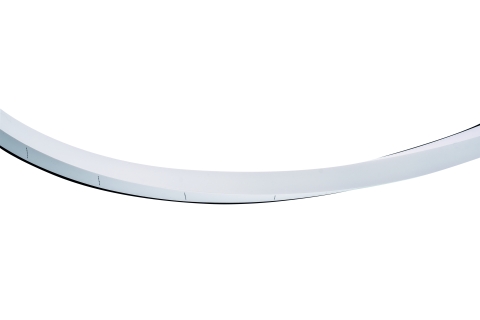

LD ST-EK Flex.LEDStrip,24V,UWW 3D
Product information "LD ST-EK Flex.LEDStrip,24V,UWW 3D"
- Flexible LED Stripe sealed in UV-, chlorine-,
- salt water-, solvent- and heat-resistant special silicone
- for indoor- and outdoor use, IP68
- cuttable every 55.56 mm / 7 LEDs
- number of LEDs per meter: 126
- LED pitch: 7.94 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter: 780 lm
- voltage: 24V DC
- power per meter: 12 W
- lifespan L70B50: >= 36,000 h
- energy efficiency class: G

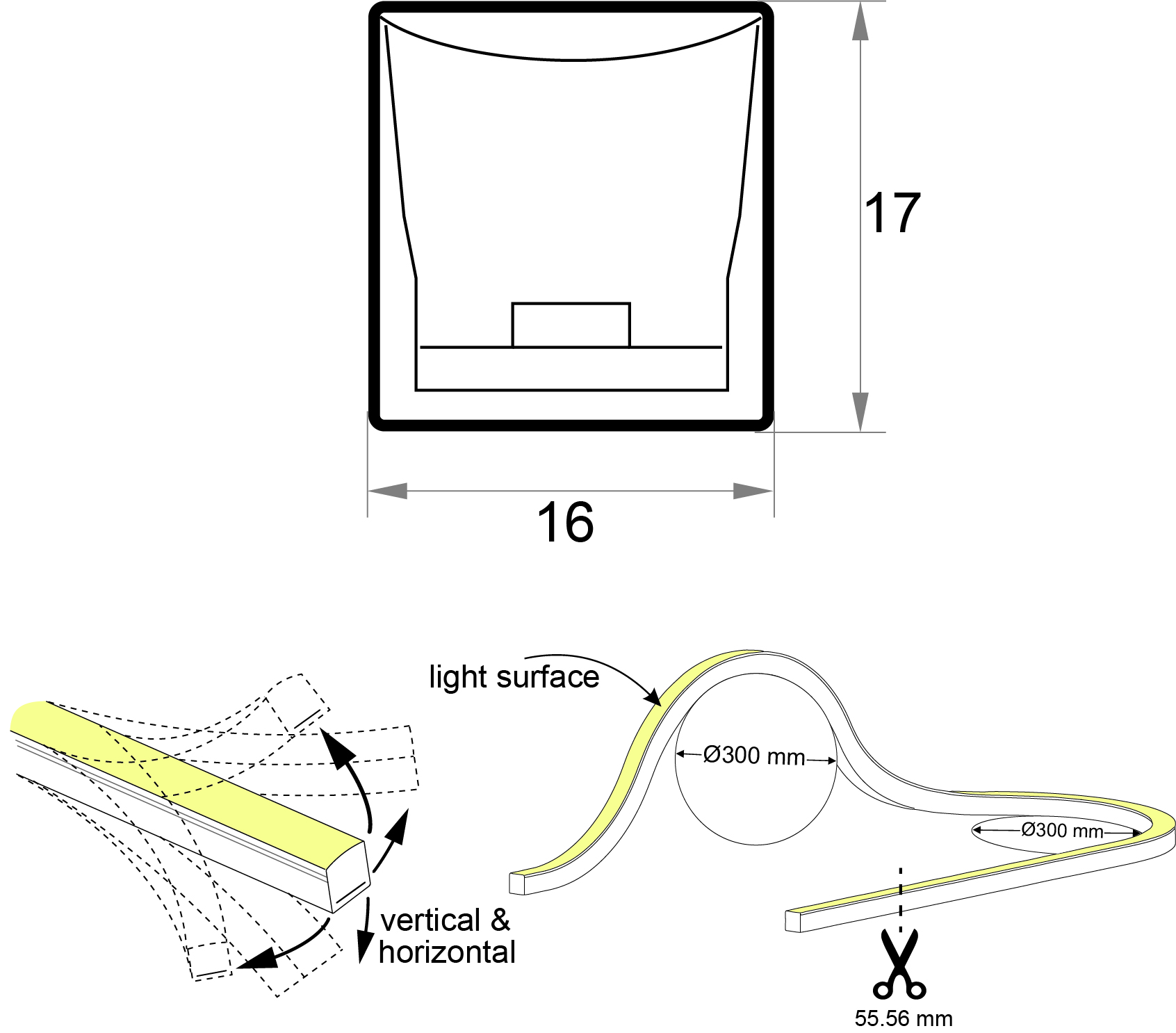

- WxH in mm: 16 x 17
- Temperature range: -45 to +55° C
- Processing temperature: +10 to +55° C
- Maximum length per connection: 10 meter
- Bending radius horizontal/vertical: 150 mm
- INFO: Binning S76873/AB2BG/1233 NO cutting marks
- Binning S76873/AB2BG/0792 WITH cutting marks
Technical Data
| BAR code: | 4251835768375 |
|---|---|
| Width: | 16 mm |
| Height: | 17 mm |
| Unit Code: | meter |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 6,19 lm |
| Temperature range: | -45 - 55 |
| LEDs per meter: | 126 |
| Cutting length in mm: | 55,56 mm |
| Power W/m: | 12 |
| Lumen per meter: | 780 |
| Lumen per watt: | 65 |
| IP protection rating: | 68 |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| Auslaufartikel: | Yes |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | light source |
