CE
Disposal instructions according to 2012/19/EU
Parallel connection
Protection class III
REACH
RoHS
UV-resistant
Product number:
S76870
LD ST-EK Flex.LEDStrip,24V,RGBW-30 int.TWELVE 3D
Product information "LD ST-EK Flex.LEDStrip,24V,RGBW-30 int.TWELVE 3D"
- flexible LED Stripe sealed in UV-, chlorine-,
- salt water- and solvent resistant white silicone
- for indoor and outdoor use, IP68
- cuttable every 83.33 mm / 7 LEDs
- number of LEDs per meter: 84
- LED pitch: 11.91 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter: 875 lm
- luminous flux per meter 3000 K: 343 lm
- pixel per meter: 12
- IC type: UCS2904
- power per meter: 22 W
- energy efficiency class: G
- lifespan L70B50: >= 36,000 h

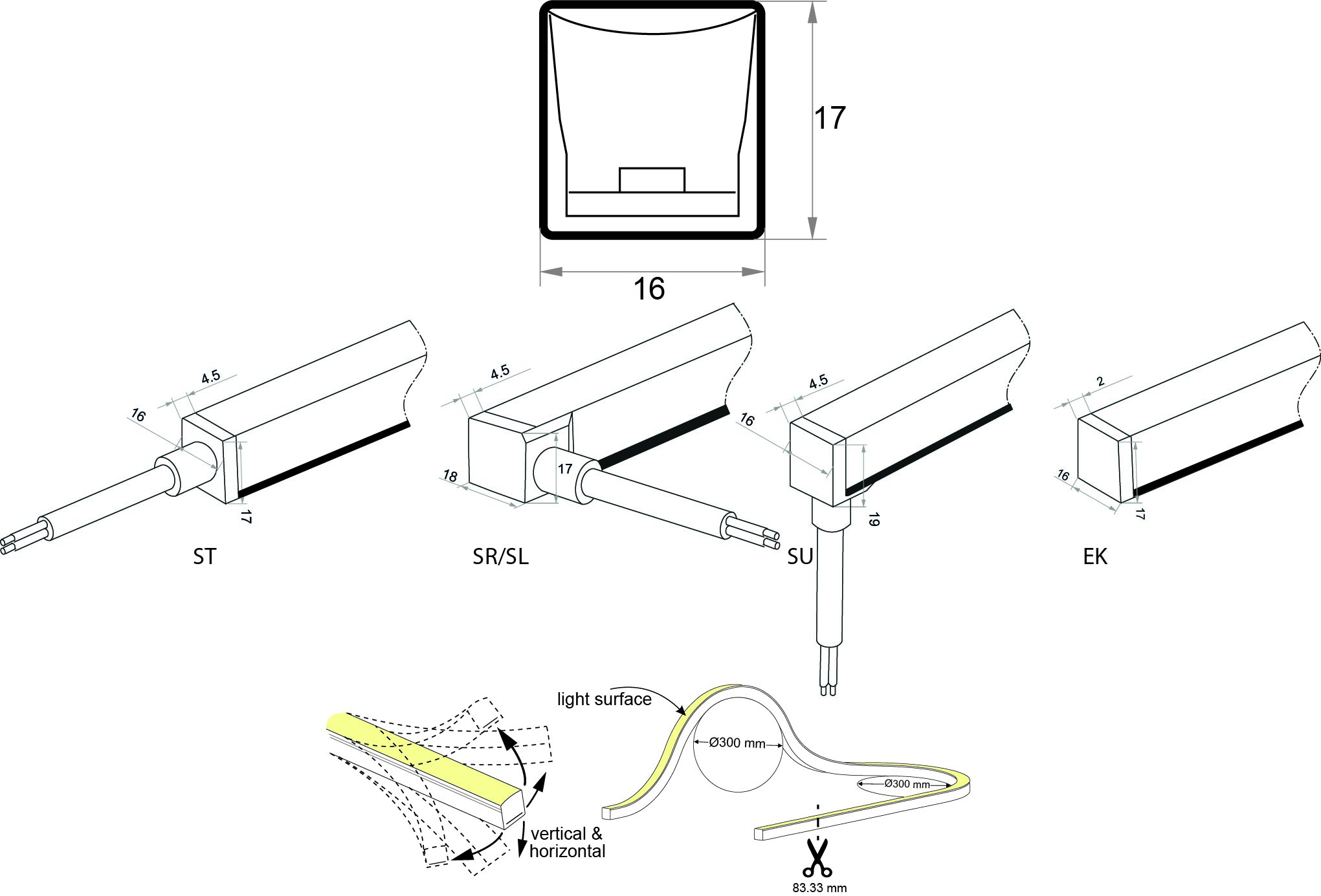

- WxH in mm: 16 x 17
- temperature range: -40 to +45°C
- processing temperature: +10 to +45°C
- maximum length per connection: 6 meter
- bending radius: 150 mm
- attention: do not run all colors at same time on
- maximum load (max. 80%)
Technical Data
| BAR code: | 4251835768702 |
|---|---|
| Width: | 16 mm |
| Height: | 17 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 10,30 lm |
| Temperature range: | -40 - 45 |
| LEDs per meter: | 84 |
| Cutting length in mm: | 83,33 mm |
| Lumen per meter: | 865 |
| Lumen per watt: | 39,32 |
| IP protection rating: | 68 |
| Power: | 22 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | RGBW 3000K |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | light source |
