CE
Disposal instructions according to 2012/19/EU
Light source not interchangeable
Parallel connection
Protection class III
REACH
RoHS
UV-resistant
Product number:
S76223
LD S?-?? Flex.LEDStrip,48V,RGB-2700K
Product information "LD S?-?? Flex.LEDStrip,48V,RGB-2700K"
- flexible LED Stripe sealed in UV-, chlorine-,
- salt water- and solvent resistant white silicone
- for indoor and outdoor use, IP68
- cuttable every 125 mm / 8 LEDs
- number of LEDs per meter: 96
- LED pitch: 10.42 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter: 440 lm
- luminous flux per meter 2700 K: 150 lm
- power per meter: 8 W
- lifespan L70B50: >= 36,000 h

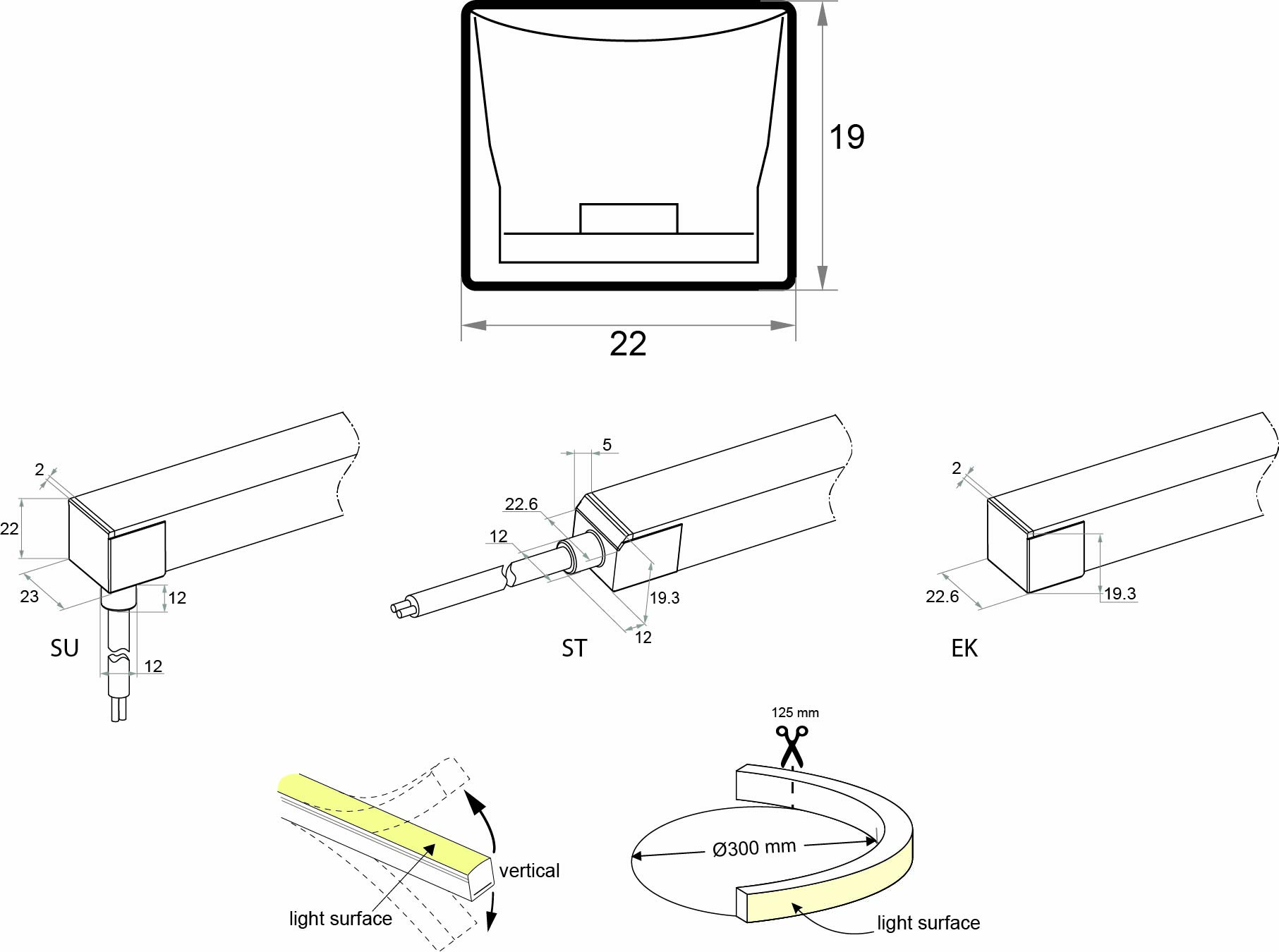

- WxH in mm: 22 x 19
- temperature range: -40 to +55°C
- processing temperature: +10 to +55°C
- maximum length per connection: 30 meter
- bending radius vertical: 150 mm
- attention: do not run all colors at same time on
- maximum load (max. 80%)
- This product contains a light source of energy efficiency class E
Technical Data
| BAR code: | 4012094062235 |
|---|---|
| Width: | 22 mm |
| Height: | 19 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 4,58 lm |
| Temperature range: | -40 - 55 |
| LEDs per meter: | 96 |
| Cutting length in mm: | 125 mm |
| Power W/m: | 8 |
| Lumen per meter: | 440 |
| Lumen per watt: | 55 |
| IP protection rating: | 68 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | RGBW 2700K |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 48 V |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 36000 |
| Geeignete Lichtquelle: | LED |
| Ecodesign: | containing product |
