CE
Disposal instructions according to 2012/19/EU
Parallel connection
Protection class III
REACH
RoHS
UV-resistant
Product number:
S76631

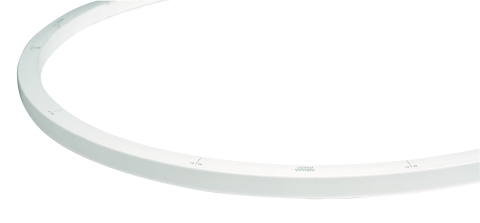

LD S?-?? Flex.LEDStrip,24V,blue
Product information "LD S?-?? Flex.LEDStrip,24V,blue"
- flexible LED stripe sealed in UV-, chlorine-,
- salt water-, solvent- and heat-resistant special silicone
- for indoor- and outdoor use, IP67
- cuttable every 83.33 mm / 12 LEDs
- number of LEDs per meter: 144
- LED pitch: 6.94 mm
- beam angle: 160°
- CRI: -
- luminous flux per meter: 80 lm
- voltage: 24V DC
- power per meter: 4.5 W
- lifespan L70B50: >= 36.000 h

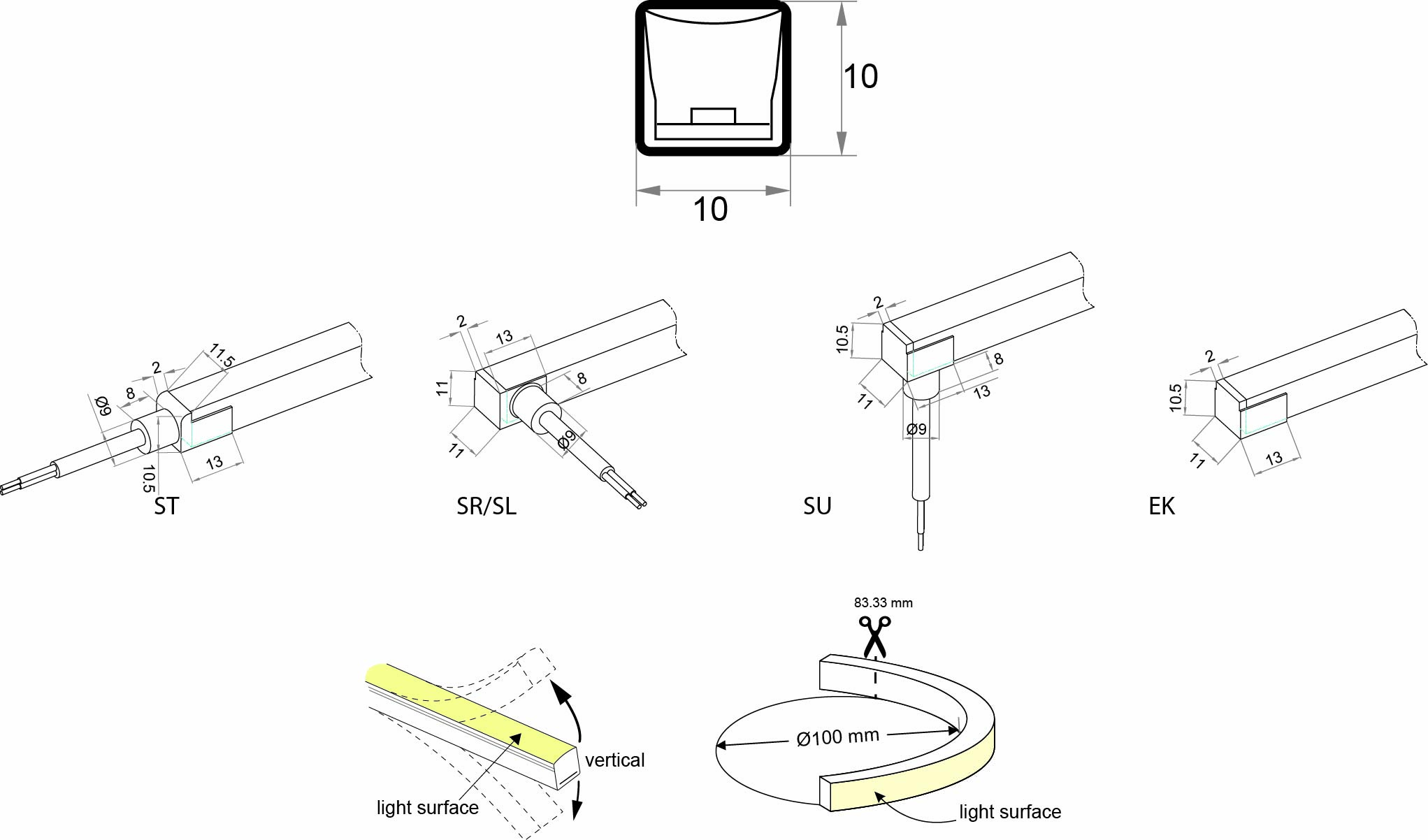

- WxH in mm: 10 x 10
- temperature range: -40 to +65°C
- processing temperature: +10 to +65°C
- maximum length per connection: 15 meter
- bending radius vertically: 50 mm
Technical Data
| BAR code: | 4012094666310 |
|---|---|
| Width: | 10 mm |
| Height: | 10 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 0,49 lm |
| Temperature range: | -40 - 65 |
| LEDs per meter: | 144 |
| Cutting length in mm: | 83,33 mm |
| Power W/m: | 4,5 |
| Lumen per meter: | 70 |
| Lumen per watt: | 15,56 |
| IP protection rating: | 67 |
| Catalog color code: | weiss |
| Led color code: | Blau |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | not relevant |
