CE
Disposal instructions according to 2012/19/EU
Light source not interchangeable
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
S86059
LD S?-?? Flex.LEDStrip,24V,WW

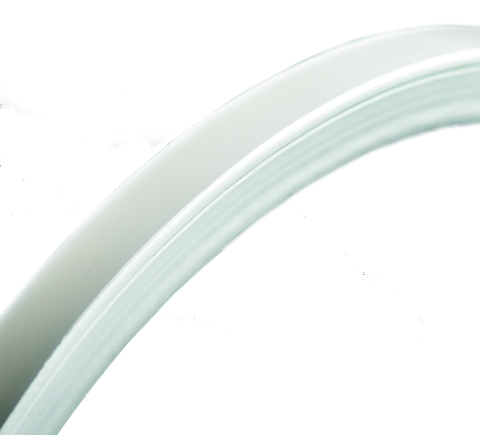

Product information "LD S?-?? Flex.LEDStrip,24V,WW"
- Flexible LED-Strip sealed in UV, chlorine, salt water
- and solvent-resistant white PVC
- for indoor- and outdoor use, IP68
- cuttable every 56.56 mm or 6 LED
- Number of LED per metre: 108
- LED Pitch: 9.26 mm
- Beam Angle: 160°
- CRI: > 80
- Luminous flux per meter: 540 lm
- Power per meter: 11 W
- Lifespan L70: >= 36.000 h

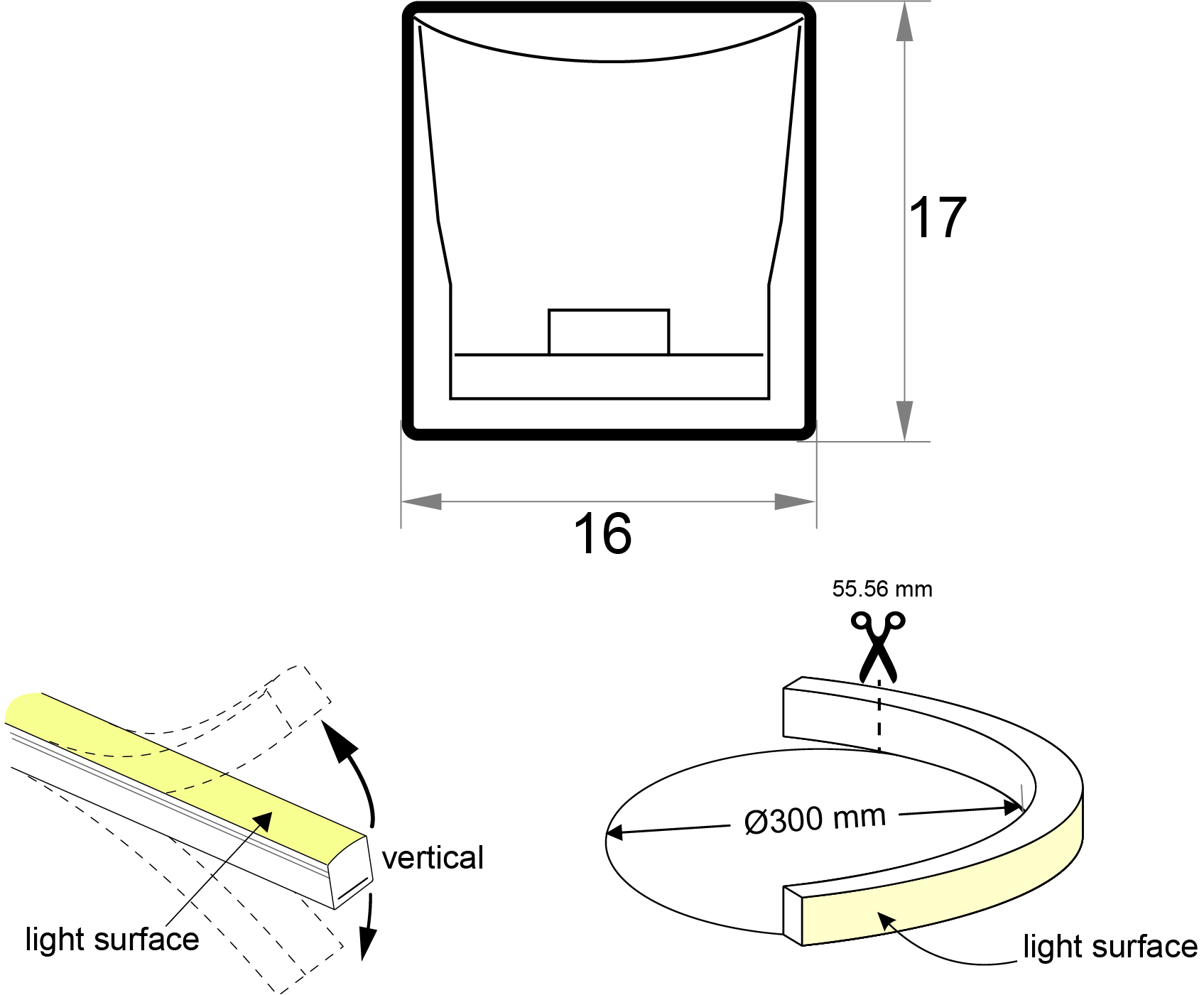

- WxH in mm: 16 x 17
- Temperature range: -20 bis +45°C
- Processing temperature: +10 bis +45°C
- Maximum length per connection: 10 metres
- Bending radius: 150 mm
Technical Data
| BAR code: | 4012094760599 |
|---|---|
| Width: | 16 mm |
| Height: | 17 mm |
| Unit Code: | meter |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 5,00 lm |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 108 |
| Cutting length in mm: | 55,56 mm |
| Power W/m: | 11 |
| Lumen per meter: | 540 |
| Lumen per watt: | 49,09 |
| IP protection rating: | 68 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 160 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| Re skus: | 68345,80474 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
