CE
Disposal instructions according to 2012/19/EU
Light source not interchangeable
Parallel connection
Protection class III
REACH
RoHS
UV-resistant
Product number:
S76715
LD S?-?? Flex.LEDStrip,24V,WW
Product information "LD S?-?? Flex.LEDStrip,24V,WW"
- Flexible LED Stripe sealed in UV-, chlorine-,
- salt water-, solvent- and heat-resistant special silicone
- for indoor and outdoor use, IP68
- cuttable every 55.56 mm / 8 LEDs
- number of LEDs per meter: 144
- LED pitch: 6.94 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter: 1550 lm
- voltage: 24 V DC
- power per meter: 18 W
- lifespan L70B50: >= 36,000 h

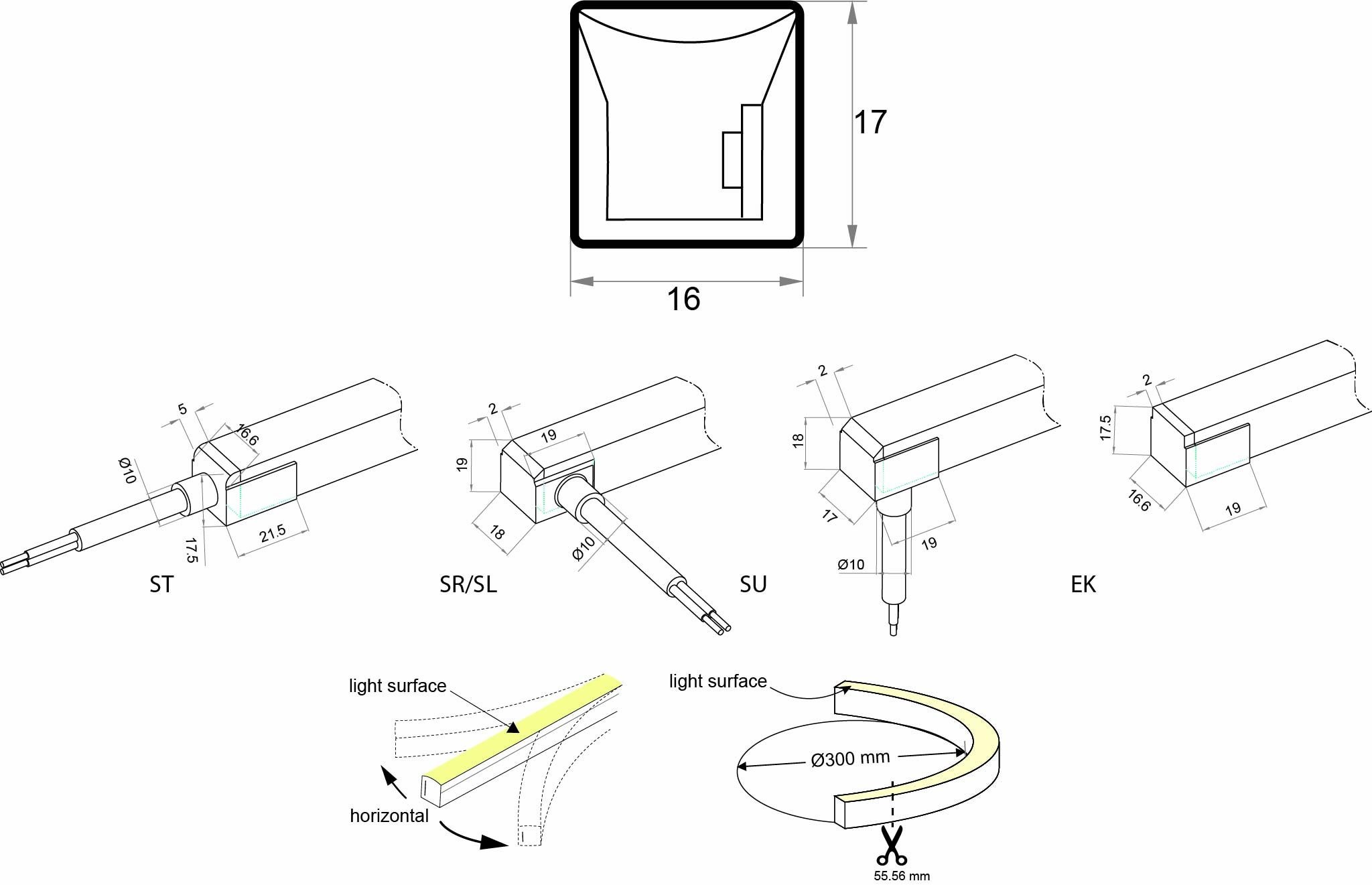

- WxH in mm: 16 x 17
- Temperature range: -40 to +45°C
- Processing temperature: +10 to +45°C
- Maximum length per connection: 5 meter
- Bending radius horizontal: 150 mm
- anti-wicking ferrule diameter = 12 mm: the anti-wicking ferrule is located at
- 115 mm from the connector on the cable.
- This product contains a lightsource of energy efficiency class C
Technical Data
| BAR code: | 4012094767154 |
|---|---|
| Width: | 16 mm |
| Height: | 17 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 10,76 lm |
| Temperature range: | -40 - 45 |
| LEDs per meter: | 144 |
| Cutting length in mm: | 55,56 mm |
| Power W/m: | 18 |
| Lumen per meter: | 1550 |
| Lumen per watt: | 86,11 |
| IP protection rating: | 68 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
