CE
Disposal instructions according to 2012/19/EU
Light source not interchangeable
Parallel connection
Protection class III
REACH
RoHS
UV-resistant
Product number:
S76695
LD S?-?? Flex.LEDStrip,24V,WW
Product information "LD S?-?? Flex.LEDStrip,24V,WW"
- flexible LED stripe sealed in UV-, chlorine-,
- salt water-, solvent- and heat-resistant special silicone
- for indoor- and outdoor use, IP66
- cuttable every 13.89 mm / 2 LEDs
- amount of LEDs per meter: 144
- LED pitch: 6.94 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter: 315 lm
- Voltage: 24V DC
- power per meter: 4.5 W
- lifespan L70B50: >= 36,000 h

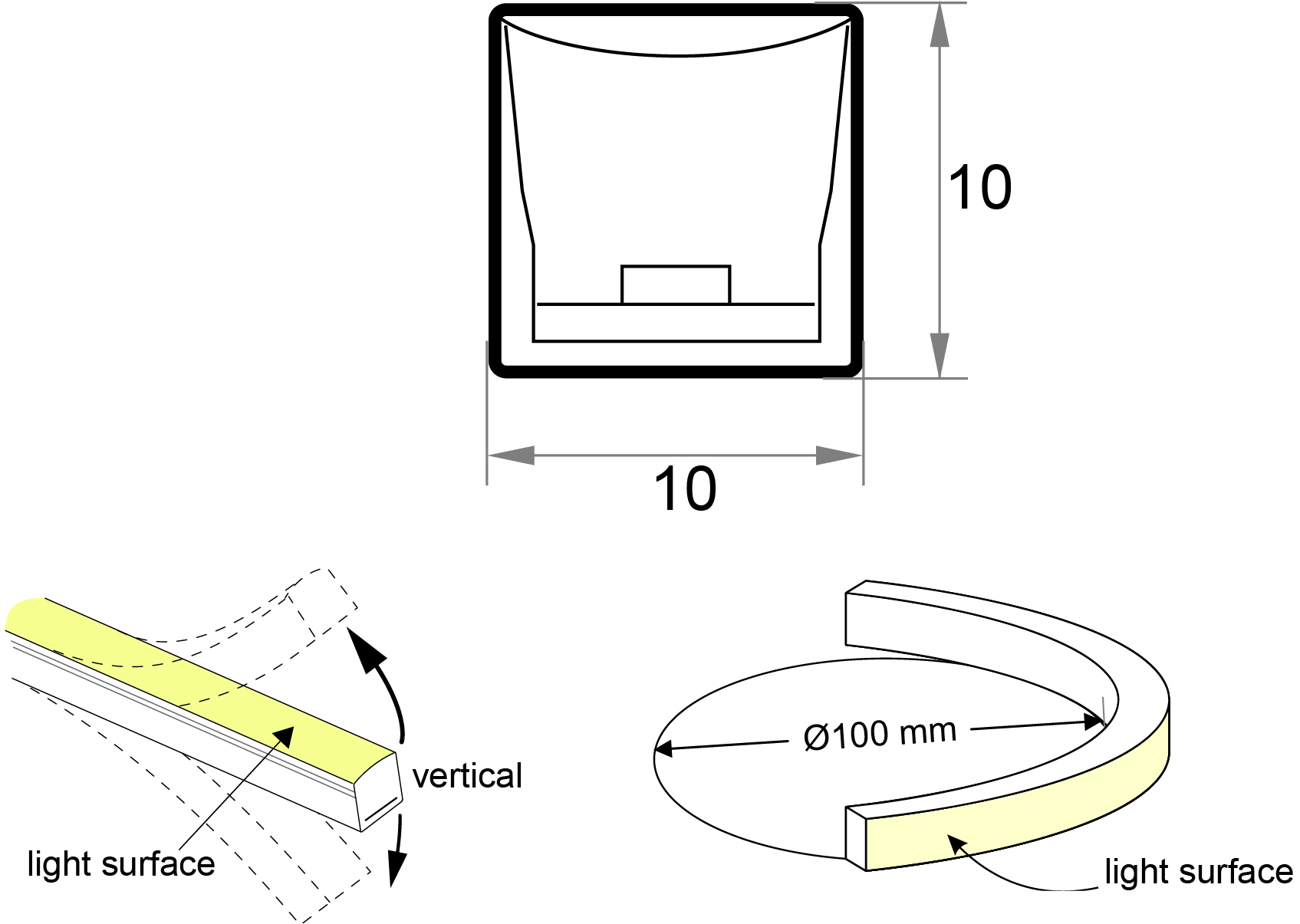

- WxH in mm: 10 x 10
- temperature range: -40 to +60°C
- processing temperature: +10 to +60°C
- maximum length per connection: 10 meter
- bending radius vertical: 50 mm
Technical Data
| BAR code: | 4012094666952 |
|---|---|
| Width: | 10 mm |
| Height: | 10 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 2,19 lm |
| Temperature range: | -40 - 60 |
| LEDs per meter: | 144 |
| Cutting length in mm: | 13,89 mm |
| Power W/m: | 4,5 |
| Lumen per meter: | 315 |
| Lumen per watt: | 157,5 |
| IP protection rating: | 66 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
