CE
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
S76635
LD S?-?? Flex.LEDStrip,24V,WW

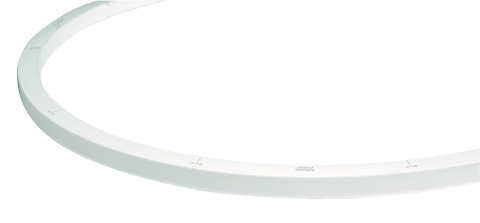

Product information "LD S?-?? Flex.LEDStrip,24V,WW"
- flexible LED stripe sealed in UV-, chlorine-,
- salt water-, solvent- and heat-resistant special silicone
- for indoor- and outdoor use, IP66
- cuttable every 83.33 mm / 12 LEDs
- amount of LEDs per meter: 144
- LED pitch: 6.94 mm
- beam angle: 160°
- CRI: >80
- lominous flux per meter: 154 lm
- Voltage: 24V DC
- power per meter: 4.5 W
- lifespan L70: >= 36.000 h

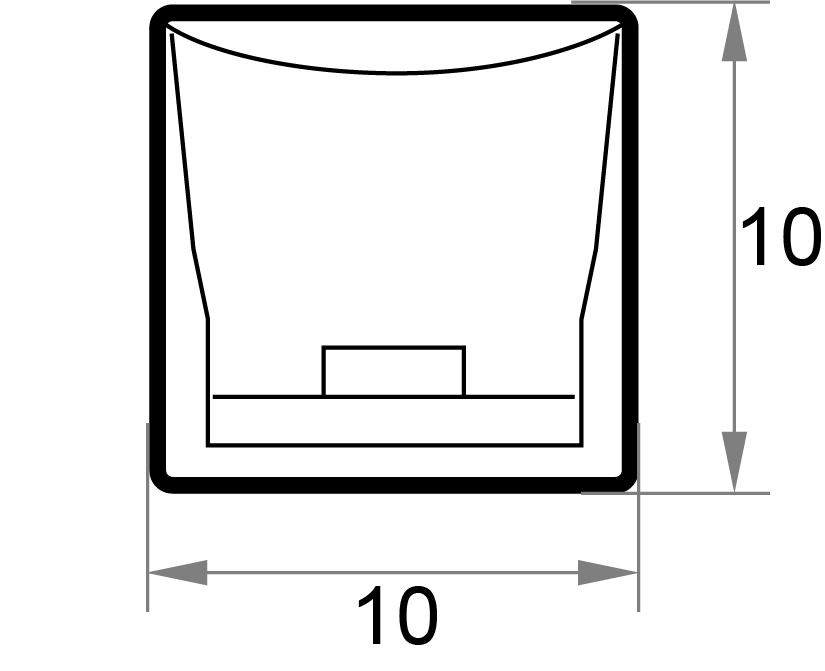

- WxH in mm: 10 x 10
- temperature range: -40 to +65°C
- processing temperature: +10 to +65°C
- maximum length per connection: 15 meter
- bending radius vertical: 50 mm
- easy connection with solderless connector (optional)
Technical Data
| BAR code: | 401209466635 |
|---|---|
| Width: | 10 mm |
| Height: | 10 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 1,10 lm |
| Temperature range: | -40 - 65 |
| LEDs per meter: | 144 |
| Cutting length in mm: | 83,33 mm |
| Power W/m: | 4,5 |
| Lumen per meter: | 154 |
| Lumen per watt: | 34,22 |
| IP protection rating: | 66 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 160 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
