Product number:
S76673
LD S?-?? Flex.LEDStrip,24V,UWW
Product information "LD S?-?? Flex.LEDStrip,24V,UWW"

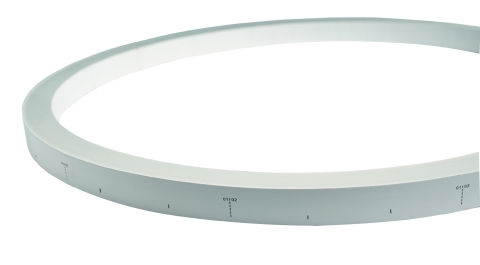

- Flexible LED Stripe sealed in UV-, chlorine-,
- salt water-, solvent- and heat-resistant special silicone
- for indoor- and outdoor use, IP67/68
- cuttable every 18.52 mm / 2 LEDs
- amount of LEDs per meter: 108
- LED pitch: 9.26 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter: 750 lm
- voltage: 24V DC
- power per meter: 12W
- lifespan L70B50: >= 36,000 h

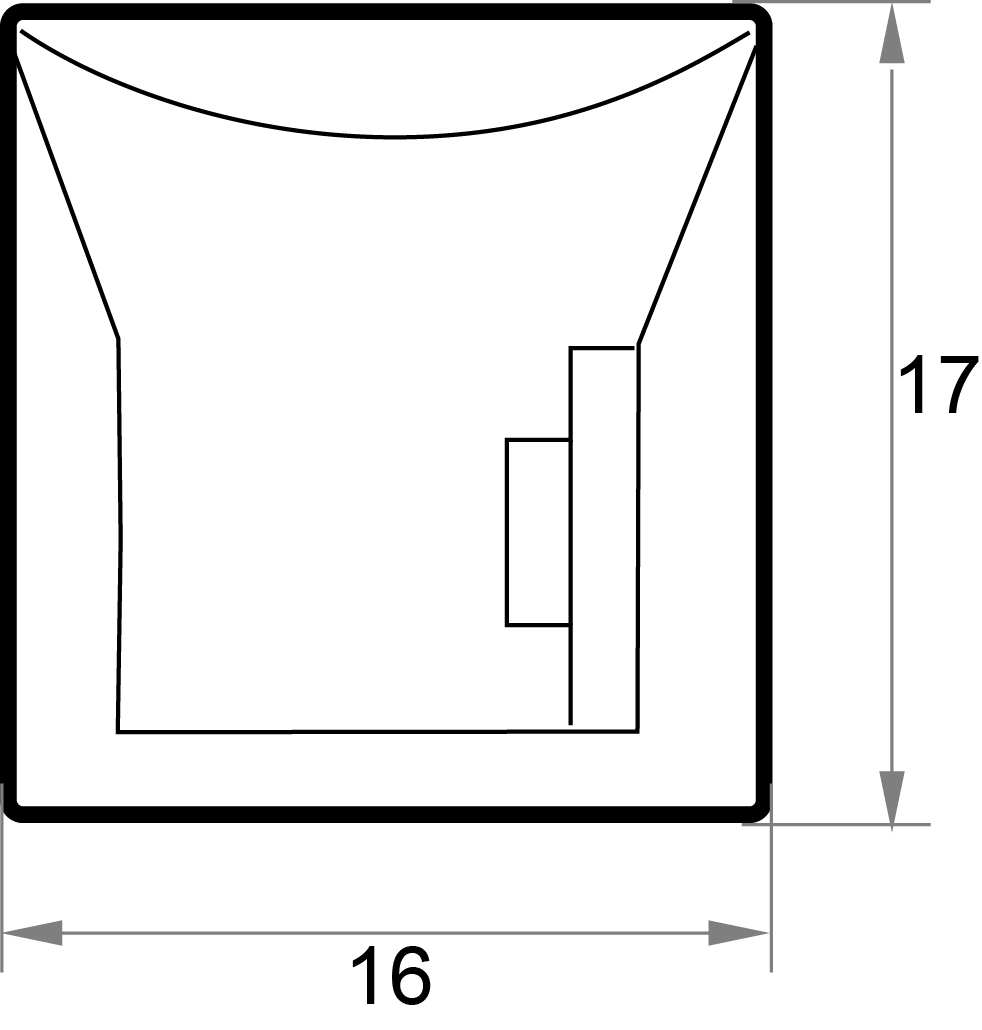

- WxH in mm: 16 x 17
- temperature range: -40 to +55°C
- installation temperature: +10 to +55°C
- maximum length per connection: 15 meter
- Bending radius horizontal: 150 mm
- This product contains a light source of energy efficiency class E.
Technical Data
| BAR code: | 4012094666730 |
|---|---|
| Width: | 16 mm |
| Height: | 17 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 6,94 lm |
| Temperature range: | -40 - 55 |
| LEDs per meter: | 108 |
| Cutting length in mm: | 18,52 mm |
| Power W/m: | 12 |
| Lumen per meter: | 750 |
| Lumen per watt: | 62,5 |
| IP protection rating: | 68 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
