Product number:
S76652

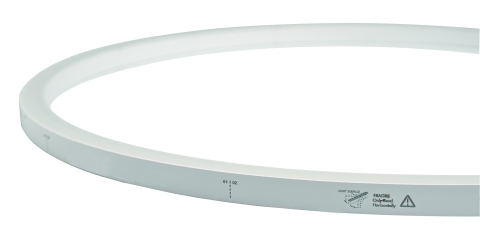

LD S?-?? Flex.LEDStrip,24V,UWW
Product information "LD S?-?? Flex.LEDStrip,24V,UWW"
- Flexible LED-Strip sealed in UV, chlorine, salt water
- and solvent-resistant white silicone
- for indoor- and outdoor use, IP66
- cuttable every 83.33 mm or 12 LED
- number of LED per metre: 144
- LED Pitch: 6.94 mm
- beam angle: 120°
- CRI: > 80
- luminous flux per meter: 390 lm
- voltage: 24 V DC
- power per meter: 9 W
- lifespan L70B50: >= 36,000 h

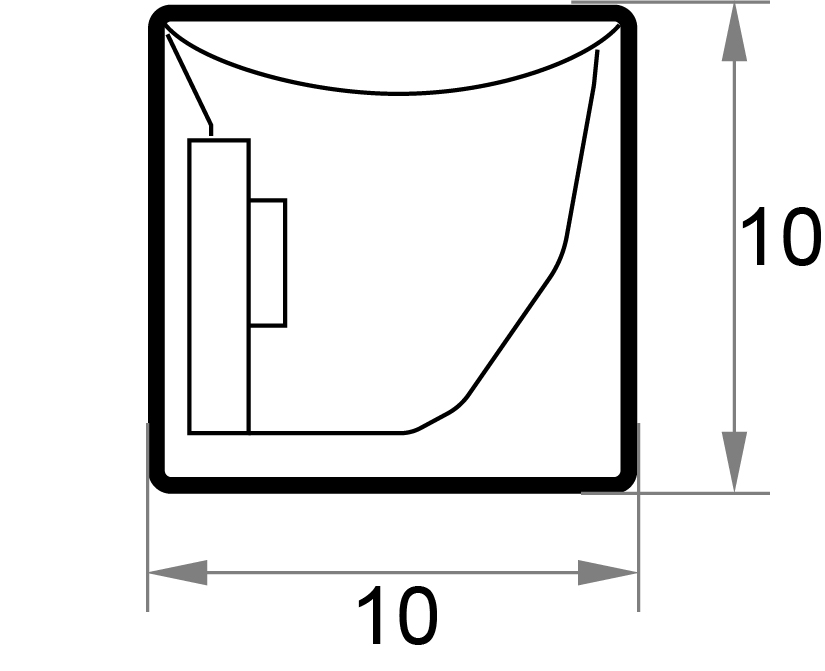

- WxH in mm: 10 x 10
- Temperature range: -40 bis +60°C
- Processing temperature: +10 bis +60°C
- Maximum length per connection: 7.5 metres
- Bending radius horizontally: 50 mm
Technical Data
| BAR code: | 4012094666525 |
|---|---|
| Width: | 10 mm |
| Height: | 10 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 2,71 lm |
| Temperature range: | -40 - 60 |
| LEDs per meter: | 144 |
| Cutting length in mm: | 83,33 mm |
| Power W/m: | 9 |
| Lumen per meter: | 390 |
| Lumen per watt: | 43,33 |
| IP protection rating: | 66 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 2400K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
