CE
Disposal instructions according to 2012/19/EU
Light source not interchangeable
Parallel connection
Protection class III
REACH
RoHS
UV-resistant
Product number:
S76643
LD S?-?? Flex.LEDStrip,24V,UWW
Product information "LD S?-?? Flex.LEDStrip,24V,UWW"

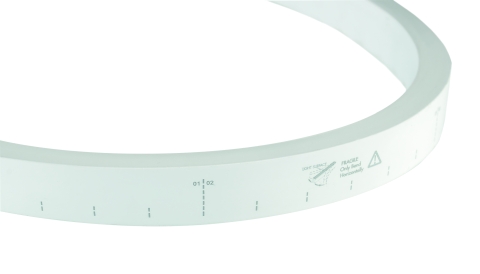

- Flexible LED Stripe sealed in UV-, chlorine-,
- salt water-, solvent- and heat-resistant special silicone
- for indoor- and outdoor use, IP68
- cuttable every 16.67 mm / each LED
- number of LEDs per meter: 60
- LED pitch: 16.67 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter: 334 lm
- voltage: 24V DC
- power per meter: 9 W
- lifespan L70B50: >= 36,000 h

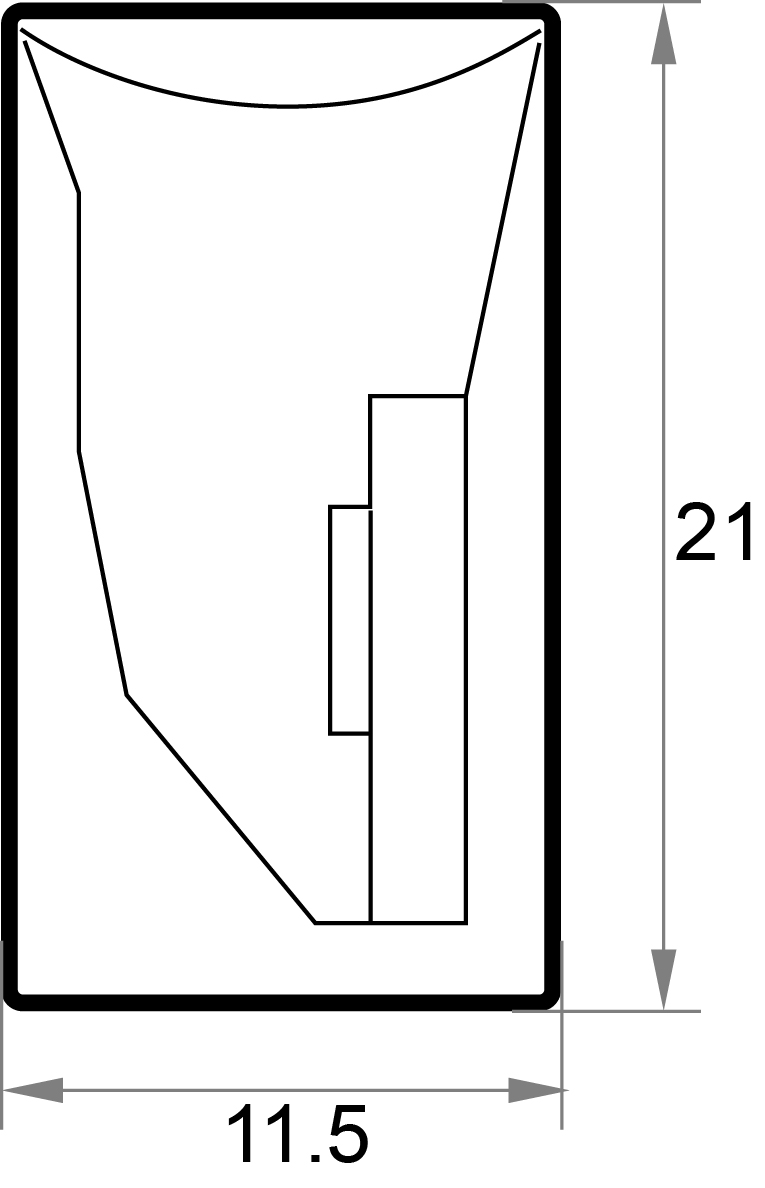

- WxH in mm: 11.5 x 21
- Temperature range: -40 to +60° C
- Processing temperature: +10 to +60° C
- Maximum length per connection: 18 meter
- Bending radius horizontal: 60 mm
Technical Data
| BAR code: | 4012094666433 |
|---|---|
| Width: | 11 mm |
| Height: | 21 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 0,00 lm |
| Temperature range: | -40 - 60 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 16,67 mm |
| Power W/m: | 9 |
| Lumen per meter: | 334 |
| Lumen per watt: | 37,11 |
| IP protection rating: | 68 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
