CE
Disposal instructions according to 2012/19/EU
Light source not interchangeable
Parallel connection
Protection class III
REACH
RoHS
UV-resistant
Product number:
S76043
LD S?-?? Flex.LEDStrip,24V,UWW

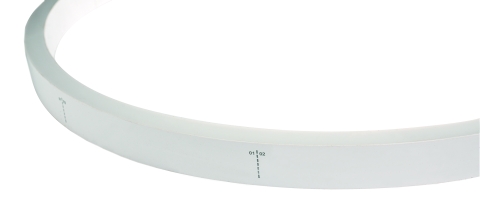

Product information "LD S?-?? Flex.LEDStrip,24V,UWW"
- Flexible LED Stripe sealed in UV-, chlorine-,
- salt water-, solvent- and heat-resistant special silicone
- for indoor- and outdoor use, IP68
- specially for the sauna area
- cuttable every 83.33 mm / 6 LEDs
- amount of LEDs per meter: 72
- LED pitch: 13.89 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter: 240 lm
- voltage: 24V DC
- power per meter: 6 W
- lifespan L70B50: >= 36,000 h

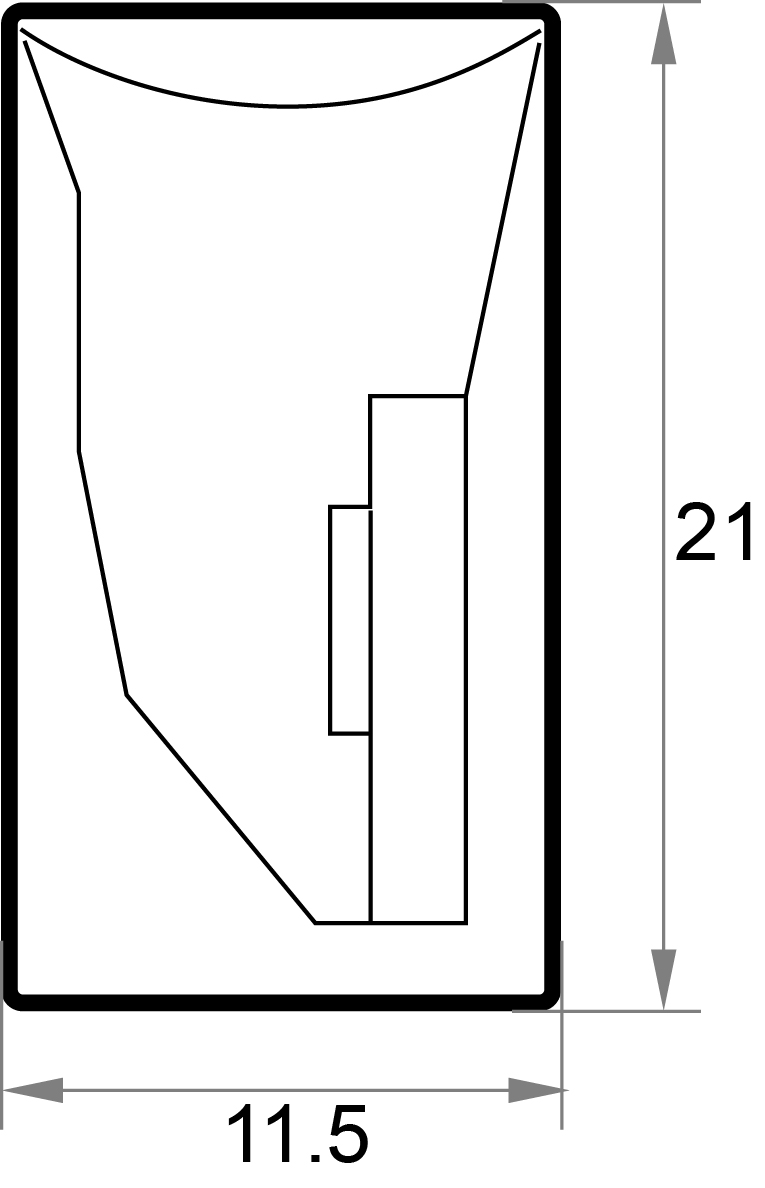

- WxH in mm: 11.5 x 21
- Temperature range: -45 to +90°C
- Processing temperature: +10 to +90°C
- Maximum length per connection: 10 meter
- min. bending radius vertical: 60 mm
Technical Data
| BAR code: | 4012094760438 |
|---|---|
| Width: | 11 mm |
| Height: | 21 mm |
| Unit Code: | meter |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 3,33 lm |
| Temperature range: | -45 - 90 |
| LEDs per meter: | 72 |
| Cutting length in mm: | 83,33 mm |
| Power W/m: | 6 |
| Lumen per meter: | 240 |
| Lumen per watt: | 40 |
| IP protection rating: | 68 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| Auslaufartikel: | Yes |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
| Psb: | 0,00 |
