CE
Protection class III
RoHS
UV-resistant
Product number:
S76013

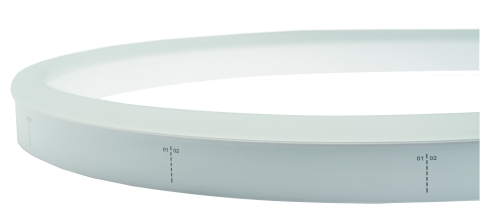

LD S?-?? Flex.LEDStrip,24V,UWW
Product information "LD S?-?? Flex.LEDStrip,24V,UWW"
- Flexible LED Stripe sealed in UV-, chlorine-,
- salt water-, solventresistant white silicone
- for indoor- and outdoor use, IP68
- Cuttable every 83,33 mm / 6 LEDs
- Amount of LEDs per meter: 72
- LED pitch: 13.89 mm
- Beam angle: 160°
- CRI: >80
- Light colour: 2.700 K
- Luminous flux per meter: 470 lm
- Voltage: 24V DC
- Power per Meter: 12 W
- Lifetime L70: >= 36.000 h
- WxH in mm: 11.5 x 29
- Temperature range: -40 to +55°C
- Processing temperature: +10 to +55°C
- Maximum length per connection: 15 meter
- Bending radius: 60 mm horizontal
Technical Data
| BAR code: | 4012094760131 |
|---|---|
| Width: | 11 mm |
| Height: | 29 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 0,00 lm |
| Temperature range: | -40 - 55 |
| LEDs per meter: | 72 |
| Cutting length in mm: | 83,33 mm |
| Power W/m: | 12 |
| Lumen per meter: | 470 |
| Lumen per watt: | 39,17 |
| IP protection rating: | 68 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 160 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
