CE
Disposal instructions according to 2012/19/EU
Light source not interchangeable
Parallel connection
Protection class III
REACH
RoHS
UV-resistant
Product number:
S76365

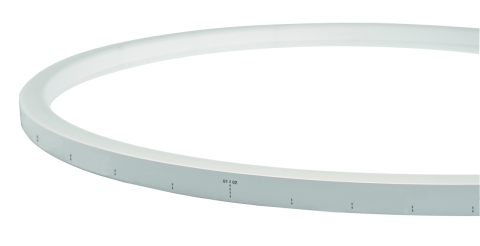

LD S?-?? Flex.LEDStrip,24V,UWW 3000K
Product information "LD S?-?? Flex.LEDStrip,24V,UWW 3000K"
- Flexible LED Stripe sealed in UV-, chlorine-,
- salt water- and solvent resistant silicone
- for indoor- and outdoor use, IP67
- cuttable every 14.28 mm / 2 LEDs
- amount of LEDs per meter: 140
- LED pitch: 7.14 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter: 540 lm
- voltage: 24V DC
- power per meter: 9 W
- lifespan L70B50: >= 51.000 h

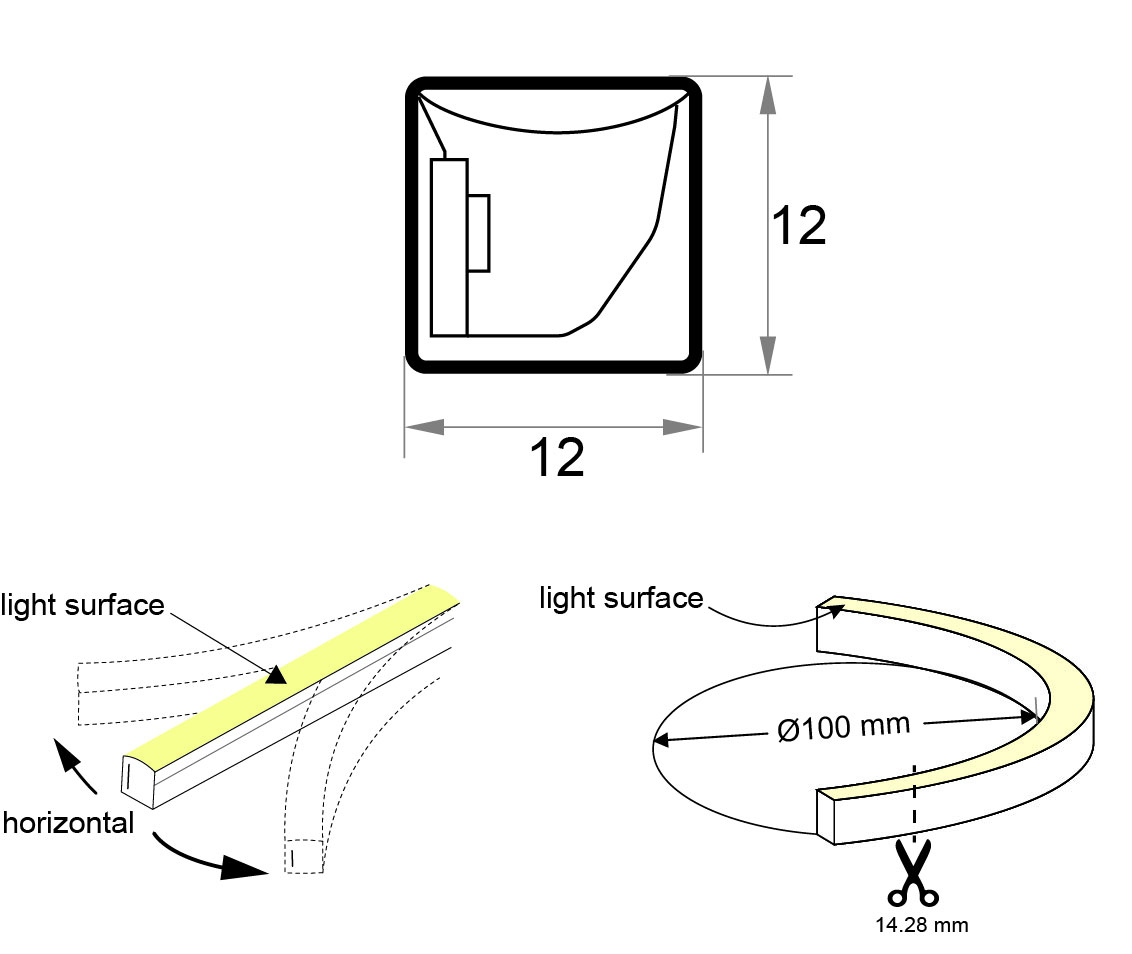

- WxH in mm: 12 x 12
- Temperature range: -40 to +60°C
- Processing temperature: +10 to +60°C
- Maximum length per connection: 5 meter
- horizontal bending radius: 50 mm
- This product contains a light source of energy efficiency class E
Technical Data
| BAR code: | 4012094763651 |
|---|---|
| Width: | 12 mm |
| Height: | 12 mm |
| Unit Code: | meter |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 3,86 lm |
| Temperature range: | -40 - 60 |
| LEDs per meter: | 140 |
| Cutting length in mm: | 14,28 mm |
| Power W/m: | 9 |
| Lumen per meter: | 540 |
| Lumen per watt: | 60 |
| IP protection rating: | 67 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 51000 |
| Ecodesign: | containing product |
| Service life L90B10: | 23000 |
