CE
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
S86610
LD S?-?? Flex.LEDStrip,24V,Rot
Product information "LD S?-?? Flex.LEDStrip,24V,Rot"

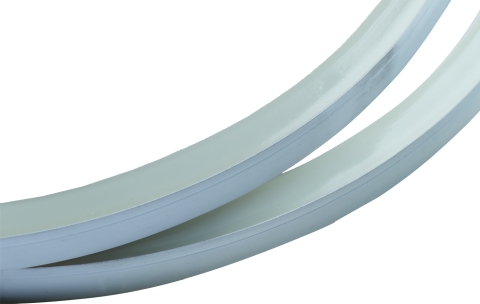

- Flexible LED-Strip sealed in UV, chlorine, salt water
- and solvent-resistant white PVC
- for indoor- and outdoor use, IP20/66
- cuttable every 83.33 mm or 12 LED
- Number of LED per metre: 144
- LED Pitch: 6.94 mm
- Beam Angle: 160°
- CRI: > -
- Luminous flux per meter: 65 lm
- Power per meter: 4.5 W
- Lifespan L70: >= 36.000 h

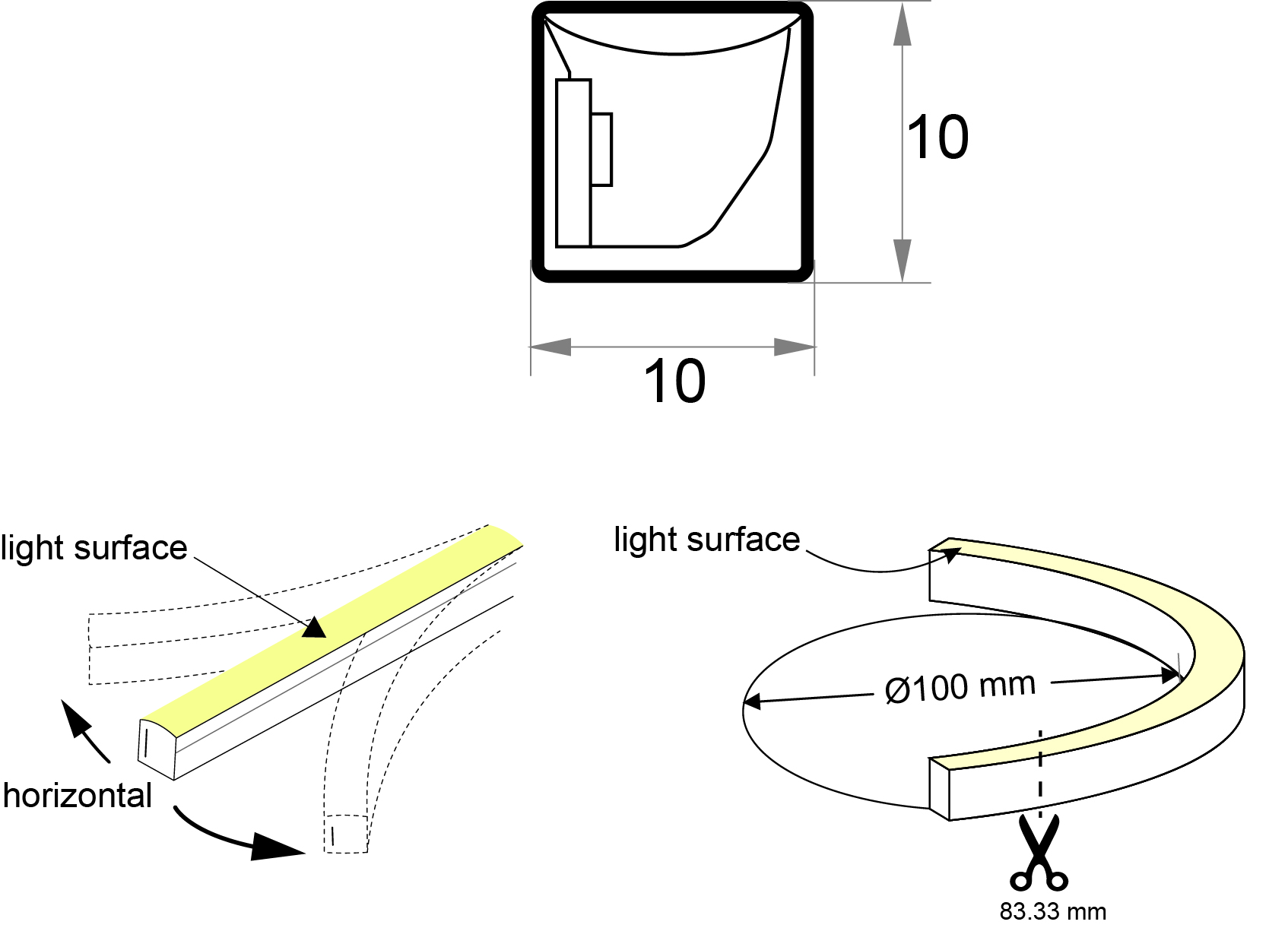

- WxH in mm: 10 x 10
- Temperature range: -20 bis +45°C
- Processing temperature: +10 bis +45°C
- Maximum length per connection: 10 metres
- Bending radius horizontal: 50 mm
Technical Data
| BAR code: | 4012094766102 |
|---|---|
| Width: | 10 mm |
| Height: | 10 mm |
| Unit Code: | meter |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 0,45 lm |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 144 |
| Cutting length in mm: | 83,33 mm |
| Power W/m: | 4,5 |
| Lumen per meter: | 65 |
| Lumen per watt: | 14,44 |
| IP protection rating: | 66 |
| Catalog color code: | weiss |
| Led color code: | Rot |
| Leuchte: | including LED |
| Beam angle: | 160 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | not relevant |
