CE
Disposal instructions according to 2012/19/EU
Light source not interchangeable
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
S86135
LD S?-?? Flex.LEDStrip,24V,RGBW
Product information "LD S?-?? Flex.LEDStrip,24V,RGBW"

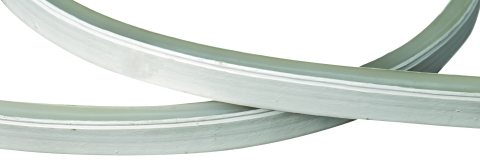

- flexible LED Stripe sealed in UV-, chlorine-,
- salt water- and solvent resistant white PVC
- for indoor- and outdoor use, IP68
- cuttable every 100 mm / 6 LEDs
- amount of LEDs per meter: 60
- LED pitch: 16.67mm
- beam angle: 160°
- CRI: >70
- luminous flux per meter: 450 lm
- power per meter: 15 W
- lifetime L70: >= 36.000 h

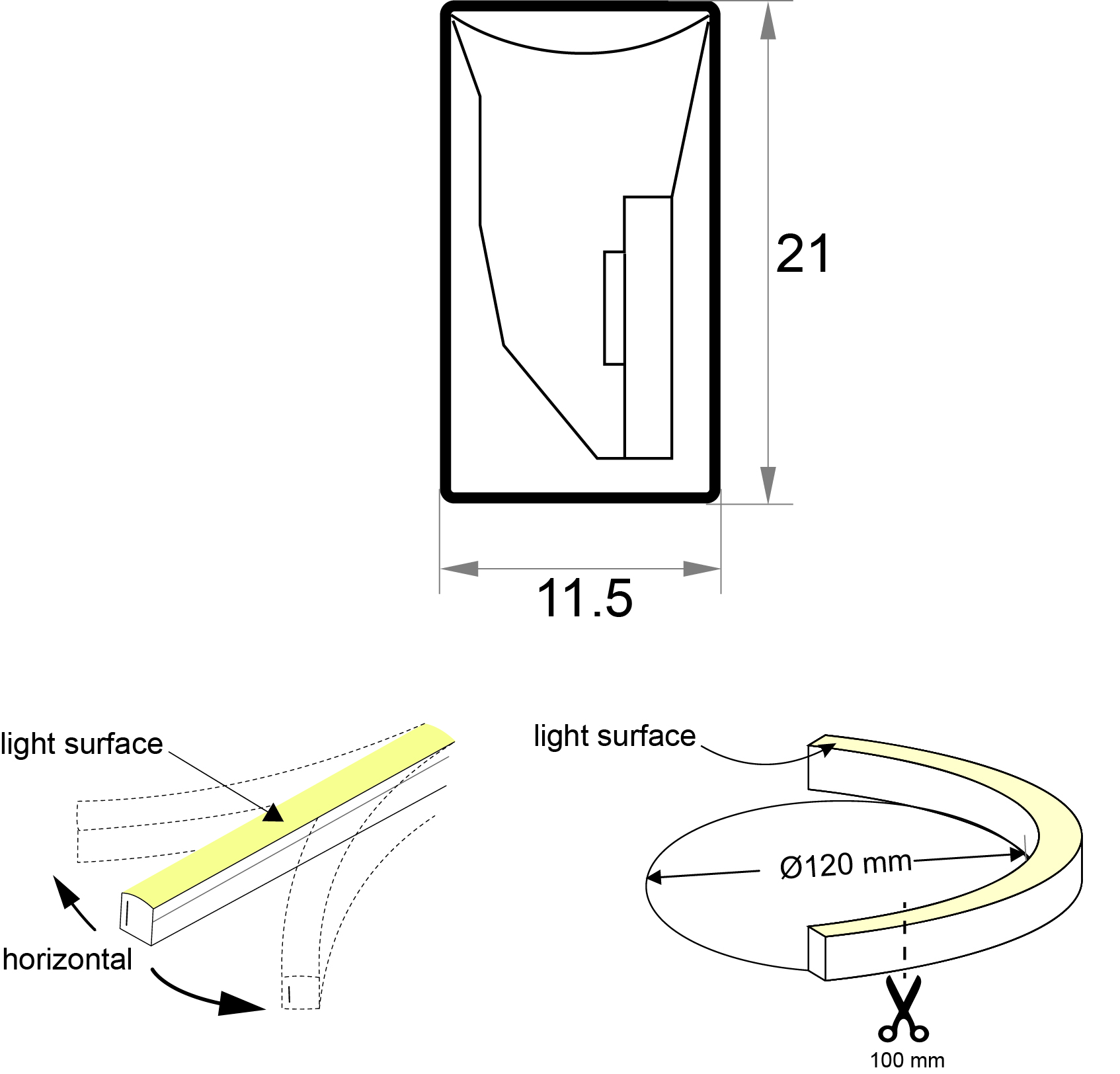

- WxH in mm: 11.5 x 21
- temperature range: -20 to +45°C
- processing temperature: +10 to +45°C
- maximum length per connection: 5 meter
- bending radius: 60 mm
- attention: do not run all colors at same time on
- maximum load (max. 80%)
- anti-wicking ferrule diameter = 15 mm: the anti-wicking ferrule is located at
- 115 mm from the connector on the cable.
- the anti-wicking ferrule is not included in the rutec Lightdesign version.
Technical Data
| BAR code: | 4012094761350 |
|---|---|
| Width: | 11 mm |
| Height: | 21 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 7,50 lm |
| Current: | 625 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 15 |
| Lumen per meter: | 450 |
| Lumen per watt: | 30 |
| IP protection rating: | 68 |
| CRI: | 70 |
| Catalog color code: | weiss |
| Led color code: | RGBW 3000K |
| Leuchte: | including LED |
| Beam angle: | 160 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| Re skus: | 68314 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
