CE
Disposal instructions according to 2012/19/EU
Light source not interchangeable
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
S86107
LD S?-?? Flex.LEDStrip,24V,RGBW
Product information "LD S?-?? Flex.LEDStrip,24V,RGBW"
- Flexible LED Stripe sealed in UV-, Chlorine-,
- salt water- and solvent resitant white PVC
- for indoor- and outdoor use, IP67/68
- cuttable every 125 mm / 7 LEDs
- Amount of LEDs per meter: 280
- LED spacing: 17,86 mm
- Beam Angle: 160°
- CRI: 70
- luminous flux per metre: 450 lm
- Load per Meter: 15 W
- Lifespan L70: >= 36.000 h

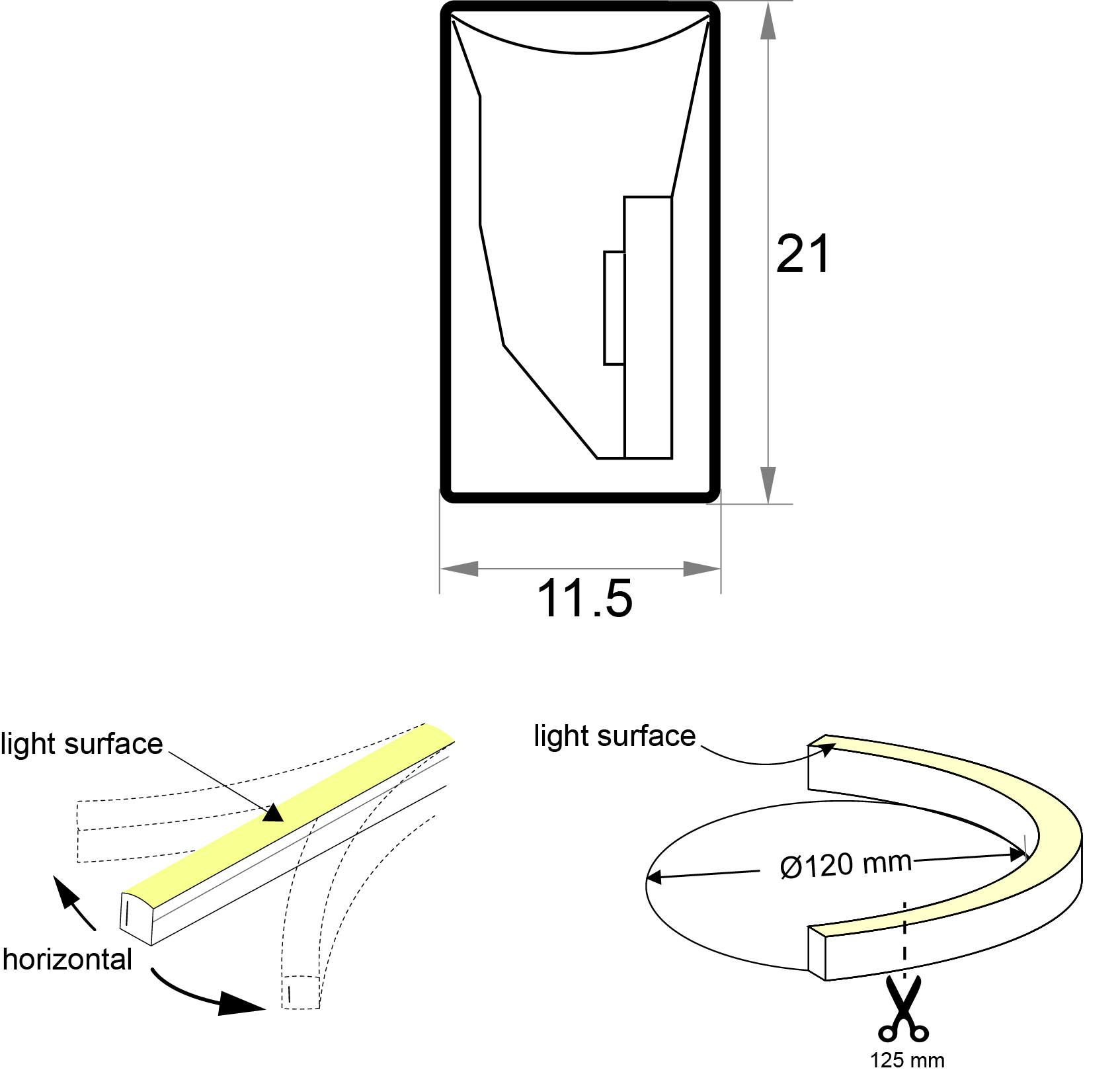

- LxWxH in mm: 5.000 x 11.5 x 21
- Temperature range: -20 to +45°C
- Processing temperature: +10 to +45°C
- Maximum length per connection: 5 metre
- Easy installation due to solder-free connectors
- bending radius: 60 mm
- Attention: do not run all at same time on
- maximum load (max. 80%)
Technical Data
| BAR code: | 4012094761077 |
|---|---|
| Width: | 11 mm |
| Height: | 21 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 8,04 lm |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 56 |
| Cutting length in mm: | 125 mm |
| Power W/m: | 15 |
| Lumen per meter: | 450 |
| Lumen per watt: | 30 |
| IP protection rating: | 68 |
| CRI: | 70 |
| Catalog color code: | weiss |
| Led color code: | RGBW 2700K |
| Leuchte: | including LED |
| Beam angle: | 160 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| Re skus: | 68314,85455,88458,89600,89990 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
