CE
Disposal instructions according to 2012/19/EU
Light source not interchangeable
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
S86078
LD S?-?? Flex.LEDStrip,24V,RGBW
Product information "LD S?-?? Flex.LEDStrip,24V,RGBW"
- flexible LED Stripe sealed in UV-, chlorine-,
- salt water- and solvent resistant white PVC
- for indoor- and outdoor use, IP68
- cuttable every 83.33 mm / 7 LEDs
- amount of LEDs per meter: 84
- LED pitch: 11.90 mm
- beam angle: 160°
- CRI: >80
- luminous flux per meter: 400 lm
- Pixel per meter: 12
- power per meter: 22 W
- lifetime L70: >= 36.000 h

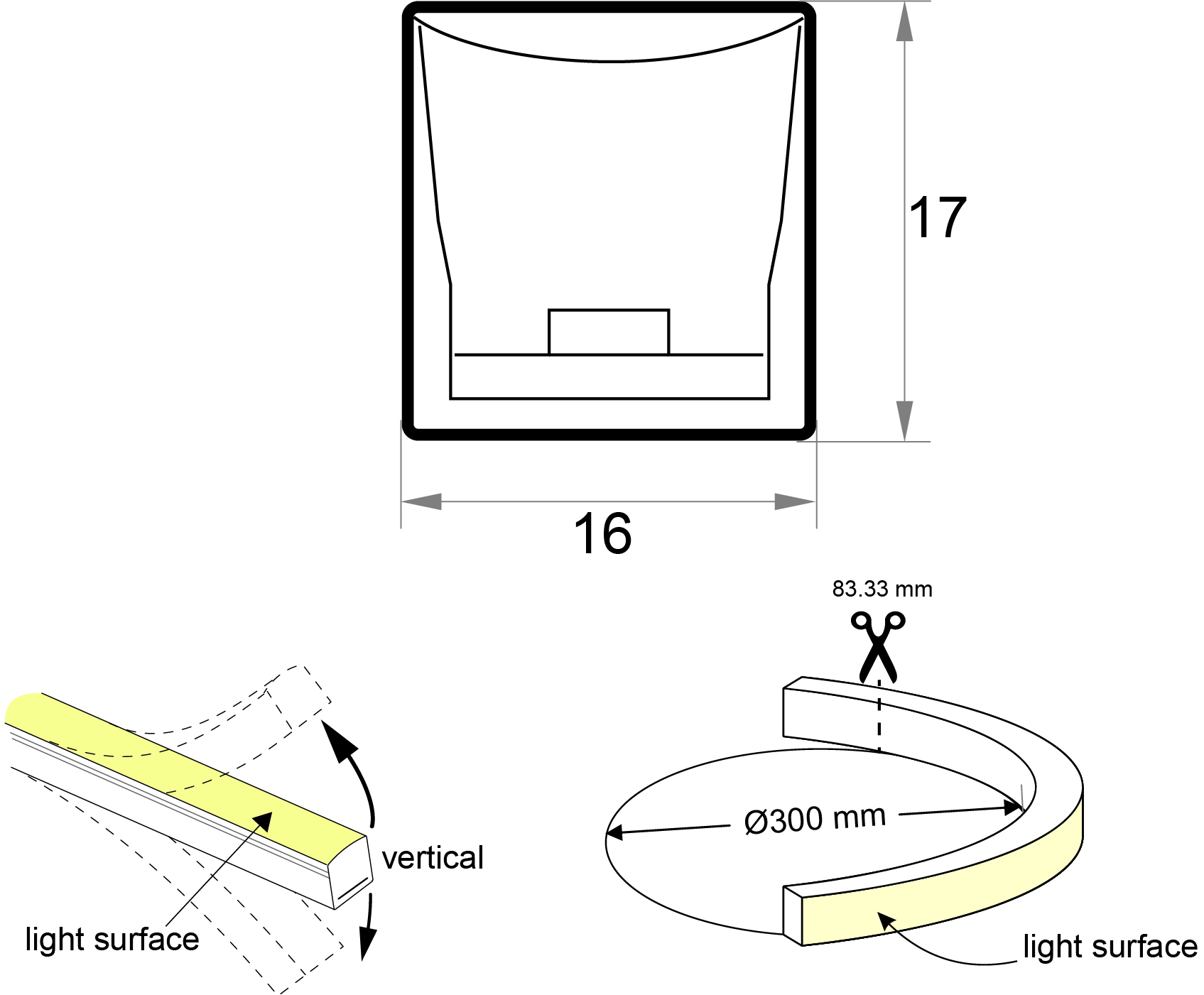

- WxH in mm: 16 x 17
- temperature range: -20 to +45°C
- processing temperature: +10 to +45°C
- maximum length per connection: 5 meter
- bending radius: 150 mm
- attention: do not run all colors at same time on
- maximum load (max. 80%)
Technical Data
| BAR code: | 4012094760780 |
|---|---|
| Width: | 16 mm |
| Height: | 17 mm |
| Unit Code: | meter |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 4,76 lm |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 84 |
| Cutting length in mm: | 83,33 mm |
| Power W/m: | 22 |
| Lumen per meter: | 400 |
| Lumen per watt: | 18,18 |
| IP protection rating: | 68 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | RGBW 2700K |
| Leuchte: | including LED |
| Beam angle: | 160 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| Re skus: | 68345,88458,89600,89990 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
