CE
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
S76136

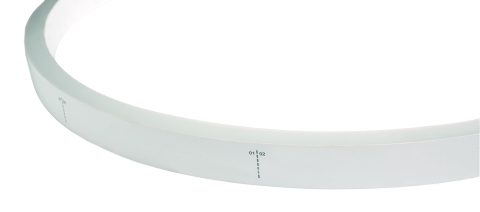

LD S?-?? Flex.LEDStrip,24V,RGBW
Product information "LD S?-?? Flex.LEDStrip,24V,RGBW"
- Flexible LED Stripe sealed in UV-, Chlorine-,
- salt water- and solvent resitant white silicone
- for indoor- and outdoor use, IP68
- cuttable every 100 mm / 6 LEDs
- Amount of LEDs per meter: 60
- LED spacing: 16,67 mm
- Beam Angle: 120°
- CRI: 80
- Light flux per meter: 315 lm
- Load per Meter: 15 W
- Lifespan L70: >= 36,000 h

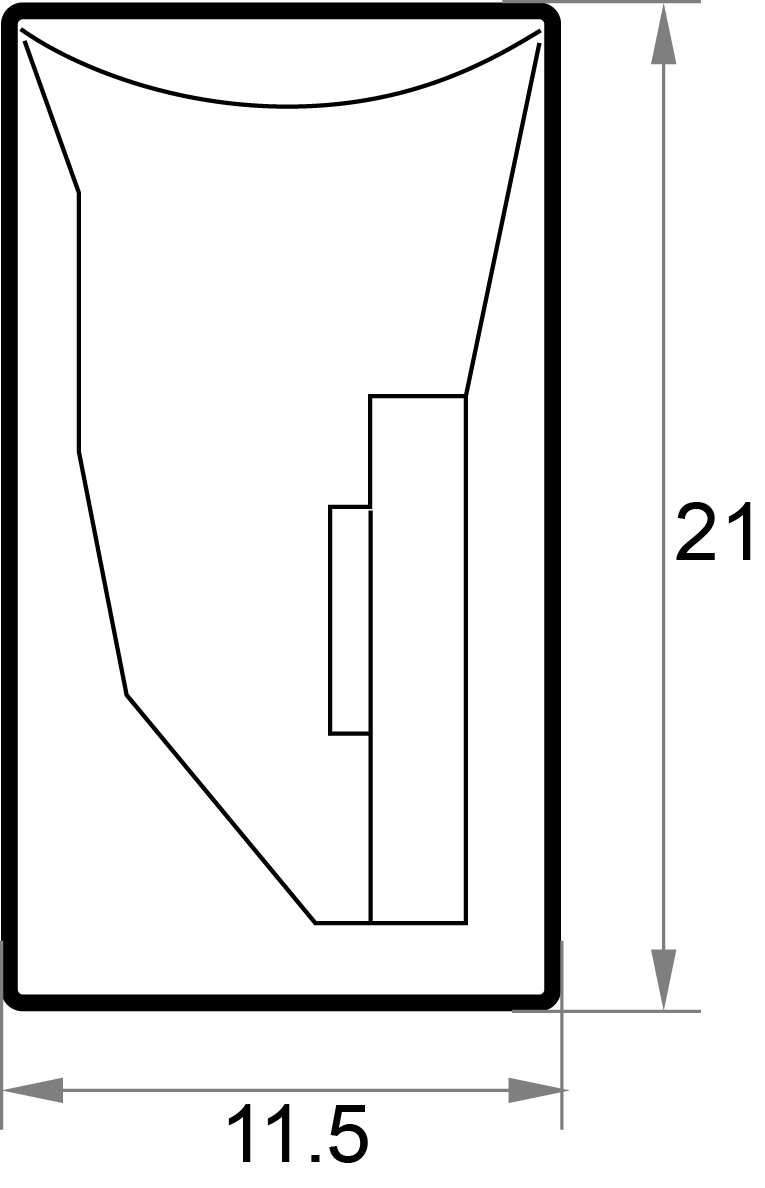

- WxH in mm: 11.5 x 21
- Temperature range: -40 to +50°C
- Processing temperature: +10 to +50°C
- Maximum length per connection: 8 meter
- Bending radius: 60 mm
- Attention: do not run all at same time on
- maximum load (max. 80%)
Technical Data
| BAR code: | 4012094061368 |
|---|---|
| Width: | 11 mm |
| Height: | 21 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 5,25 lm |
| Temperature range: | -40 - 50 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 15 |
| Lumen per meter: | 315 |
| Lumen per watt: | 21 |
| IP protection rating: | 68 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | RGBW 2700K |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
