CE
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
S76107
LD S?-?? Flex.LEDStrip,24V,RGBW

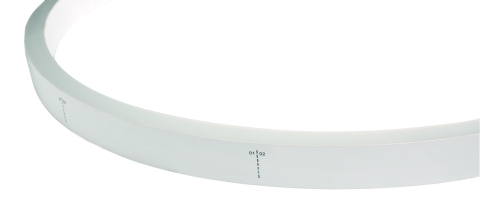

Product information "LD S?-?? Flex.LEDStrip,24V,RGBW"
- Flexible LED Stripe sealed in UV-, Chlorine-,
- salt water- and solvent resitant white silicone
- for indoor- and outdoor use, IP68
- cuttable every 125 mm / 7 LEDs
- amount of LEDs per meter: 56
- programmable pixel per meter: 8
- LED pitch: 17,86 mm
- beam angle: 160°
- CRI: >80
- light colour: RGBW (2700 K)
- luminous flux per metre: 100 lm
- power per meter: 15 W
- lifespan L70: >= 36.000 h

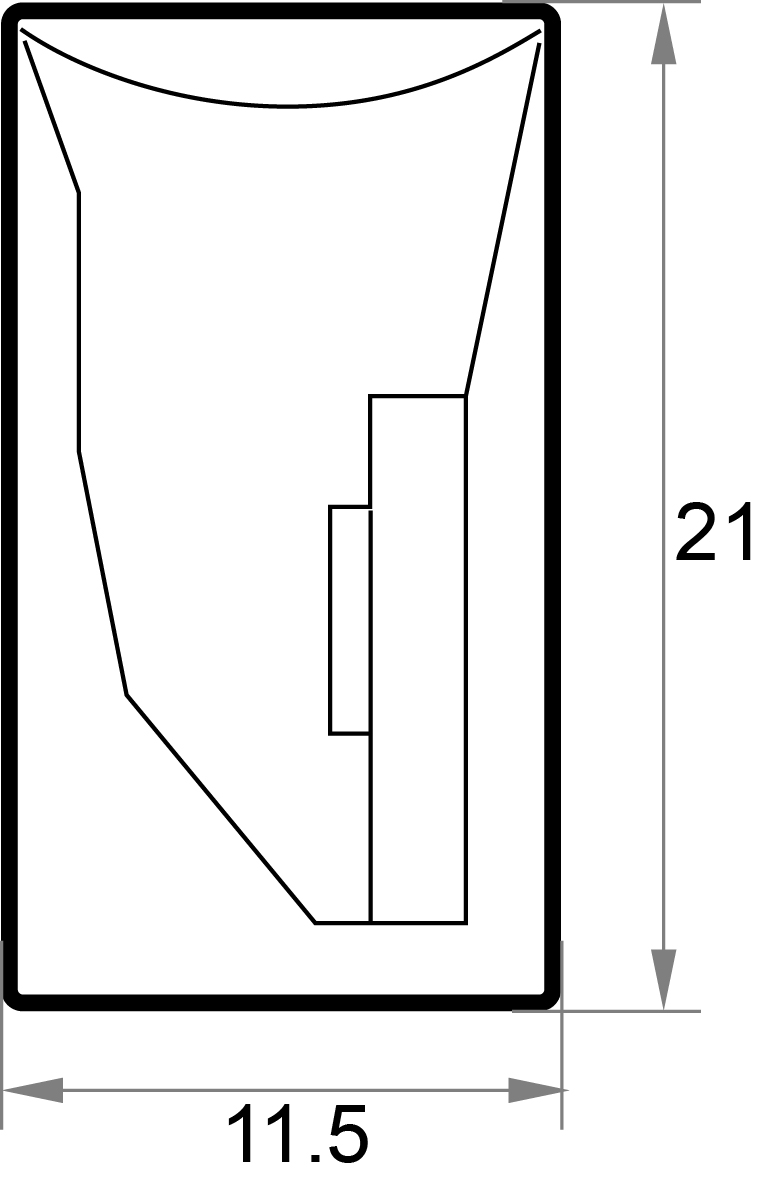

- WxH in mm: 11.5 x 21
- temperature range: -40 to +50°C
- processing temperature: +10 to +50°C
- maximum length per connection: 10 meter
- Easy installation due to solder-free connectors (optional)
- bending radius horizontal: 60 mm
- Attention: do not run all at same time on
- maximum load (max. 80%)
Technical Data
| BAR code: | 4012094061078 |
|---|---|
| Width: | 11 mm |
| Height: | 21 mm |
| Unit Code: | meter |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 1,79 lm |
| Temperature range: | -40 - 50 |
| LEDs per meter: | 56 |
| Cutting length in mm: | 125 mm |
| Power W/m: | 15 |
| Lumen per meter: | 100 |
| Lumen per watt: | 6,67 |
| IP protection rating: | 68 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | RGBW 2700K |
| Leuchte: | including LED |
| Beam angle: | 160 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
