CE
Disposal instructions according to 2012/19/EU
Light source not interchangeable
Parallel connection
Protection class III
REACH
RoHS
UKCA
UV-resistant
Product number:
S76081
LD S?-?? Flex.LEDStrip,24V,RGBW
Product information "LD S?-?? Flex.LEDStrip,24V,RGBW"
- Flexbile LED strip encapsulated in UV-, chlorine-, salt water- and
- and solvent resistant white silicone
- for indoor and outdoor use, IP68
- every 166.67 mm / 14 LEDs cuttable
- number of LEDs per metre: 84
- LED pitch: 11.90 mm
- beam angle: 120°
- CRI: >80
- luminous flux per metre: 310 lm
- power per metre: 22 W
- lifespan L70B50: >= 36,000 h

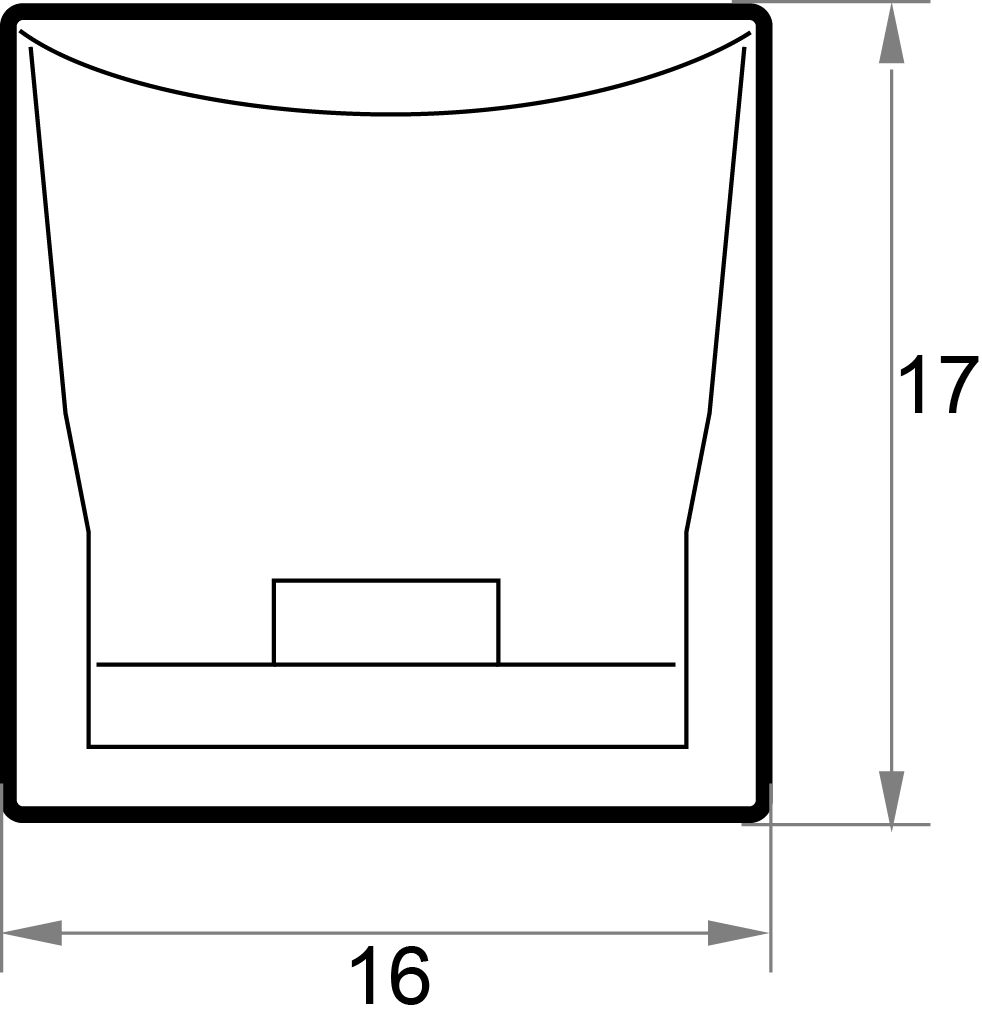

- WxH in mm: 16 x 17
- temperature range: -40 to +45°C
- installation temerature: +10 to +45°C
- maximum length per connection: 8 metres for static colours, 12 metres for running light
- bending radius vertical: 150 mm
- Attention: do not operate all colours simultaneously
- at the same time under full load (max. 80%)
Technical Data
| BAR code: | 4012094060811 |
|---|---|
| Width: | 16 mm |
| Height: | 17 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 3,69 lm |
| Temperature range: | -40 - 45 |
| LEDs per meter: | 84 |
| Cutting length in mm: | 166,67 mm |
| Power W/m: | 22 |
| Lumen per meter: | 310 |
| Lumen per watt: | 14,09 |
| IP protection rating: | 68 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | RGBW 2700K |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
