CE
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
S76026

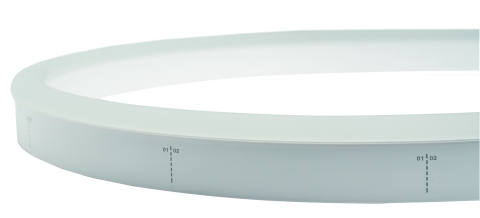

LD S?-?? Flex.LEDStrip,24V,RGBW
Product information "LD S?-?? Flex.LEDStrip,24V,RGBW"
- flexible LED Stripe sealed in UV-, chlorine-,
- salt water- and solvent resistant white silicone
- for indoor- and outdoor use, IP68
- cuttable every 100 mm / 6 LEDs
- amount of LEDs per meter: 60
- LED pitch: 16.67 mm
- beam angle: 160°
- CRI: >80
- luminous flux per meter: 280 lm
- power per meter: 15 W
- lifetime L70: >= 36.000 h
- WxH in mm: 11.5 x 29
- temperature range: -40 to +50°C
- processing temperature: +10 to +50°C
- maximum length per connection: 8 meter
- bending radius: 60 mm horizontal
- attention: do not run all colors at same time on
- maximum load (max. 80%)
Technical Data
| BAR code: | 4012094760261 |
|---|---|
| Width: | 11 mm |
| Height: | 29 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 4,67 lm |
| Temperature range: | -40 - 50 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 15 |
| Lumen per meter: | 280 |
| Lumen per watt: | 18,67 |
| IP protection rating: | 68 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | RGBW ca. 3000K |
| Leuchte: | including LED |
| Beam angle: | 160 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
