CE
Disposal instructions according to 2012/19/EU
Light source not interchangeable
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
S76005
LD S?-?? Flex.LEDStrip,24V,RGBW
Product information "LD S?-?? Flex.LEDStrip,24V,RGBW"

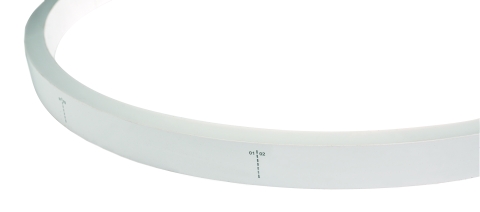

- Flexible LED Stripe sealed in UV-, Chlorine-,
- salt water- and solvent resitant white silicone
- for indoor- and outdoor use, IP68
- each individual segment separately programmable
- and individually controllable
- cuttable every 166.67 mm / 10 LEDs
- ammount of LEDs per meter: 60
- IC type: DMX512CN
- LED pitch: 16.67 mm
- beam angle: 120°
- luminous flux per meter: 200 lm
- power per meter: 15 W
- lifespan L70B50: >= 36,000 h

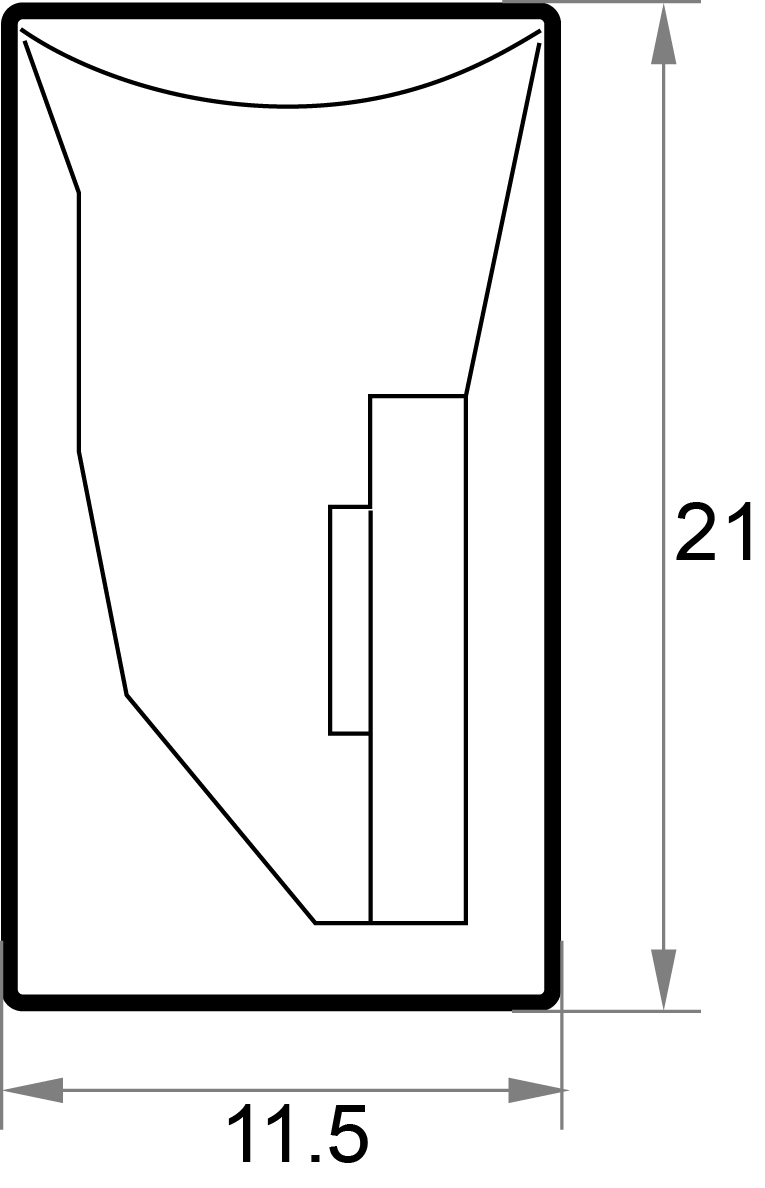

- WxH in mm: 11.5 x 21
- ambient working temperature: -40 bis +50°C
- ambient installation temperature: +10 bis +50°C
- maximum length per connection: 10 meter at static colours
- maximum length per connection: 15 meter at dynamic running light effect
- bending radius horizontal: 60 mm
- Attention: do not run all at same time on
- maximum load (max. 80%)
Technical Data
| BAR code: | 4012094060057 |
|---|---|
| Width: | 11 mm |
| Height: | 21 mm |
| Unit Code: | meter |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 0,00 lm |
| Temperature range: | -40 - 50 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 166,67 mm |
| Power W/m: | 15 |
| Lumen per meter: | 200 |
| IP protection rating: | 68 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | RGBW 3000K |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
