CE
Disposal instructions according to 2012/19/EU
Light source not interchangeable
Parallel connection
Protection class III
REACH
RoHS
UV-resistant
Product number:
S71666

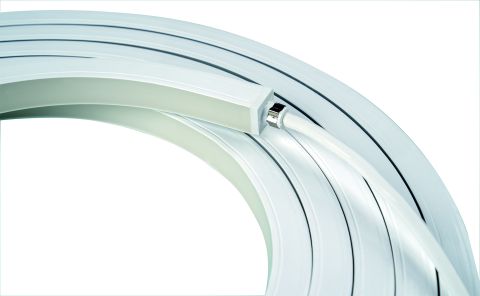

LD S?-?? Flex.LEDStrip,24V,RGBW
Product information "LD S?-?? Flex.LEDStrip,24V,RGBW"
- flexible LED Stripe sealed in UV- and
- saltwater resistant white silicone
- for indoor- and outdoor use, IP65
- cuttable every 71.4 mm / 6 LEDs
- amount of LEDs per meter: 84
- LED pitch: 11.9 mm
- beam angle: 110°
- CRI: >80
- luminous flux per meter: 344 lm
- power per meter: 15.6 W
- lifetime L70B50: >= 36,000 h
- WxH in mm: 16 x 16
- temperature range: -20 to +45°C
- processing temperature: +10 to +45°C
- maximum length per connection: 5 meter
- bending radius vertical: 65 mm
Technical Data
| BAR code: | 4012094716664 |
|---|---|
| Width: | 16 mm |
| Height: | 16 mm |
| Unit Code: | meter |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 4,10 lm |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 84 |
| Cutting length in mm: | 71,4 mm |
| Power W/m: | 15,6 |
| Lumen per meter: | 344 |
| Lumen per watt: | 22,05 |
| IP protection rating: | 65 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | RGBW 2700K |
| Leuchte: | including LED |
| Beam angle: | 110 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
| Psb: | 0,0 |
