CE
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
S86071

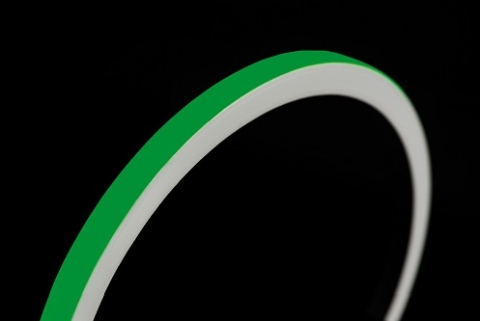

LD S?-?? Flex.LEDStrip,24V, RGB
Product information "LD S?-?? Flex.LEDStrip,24V, RGB"
- Flexible LED Stripe sealed in UV-, chlorine-,
- salt water- and solvent resistant white PVC
- for indoor- and outdoor use, IP68
- Cuttable every 83.33 mm / 7 LEDs
- Amount of LEDs per metre: 84
- LED pitch: 11.91 mm
- Beam angle: 160°
- CRI: -
- Light flux per meter: 450 lm
- Voltage: 24 V DC
- Power per metre: 12 W
- Lifetime L70: >= 36.000 h

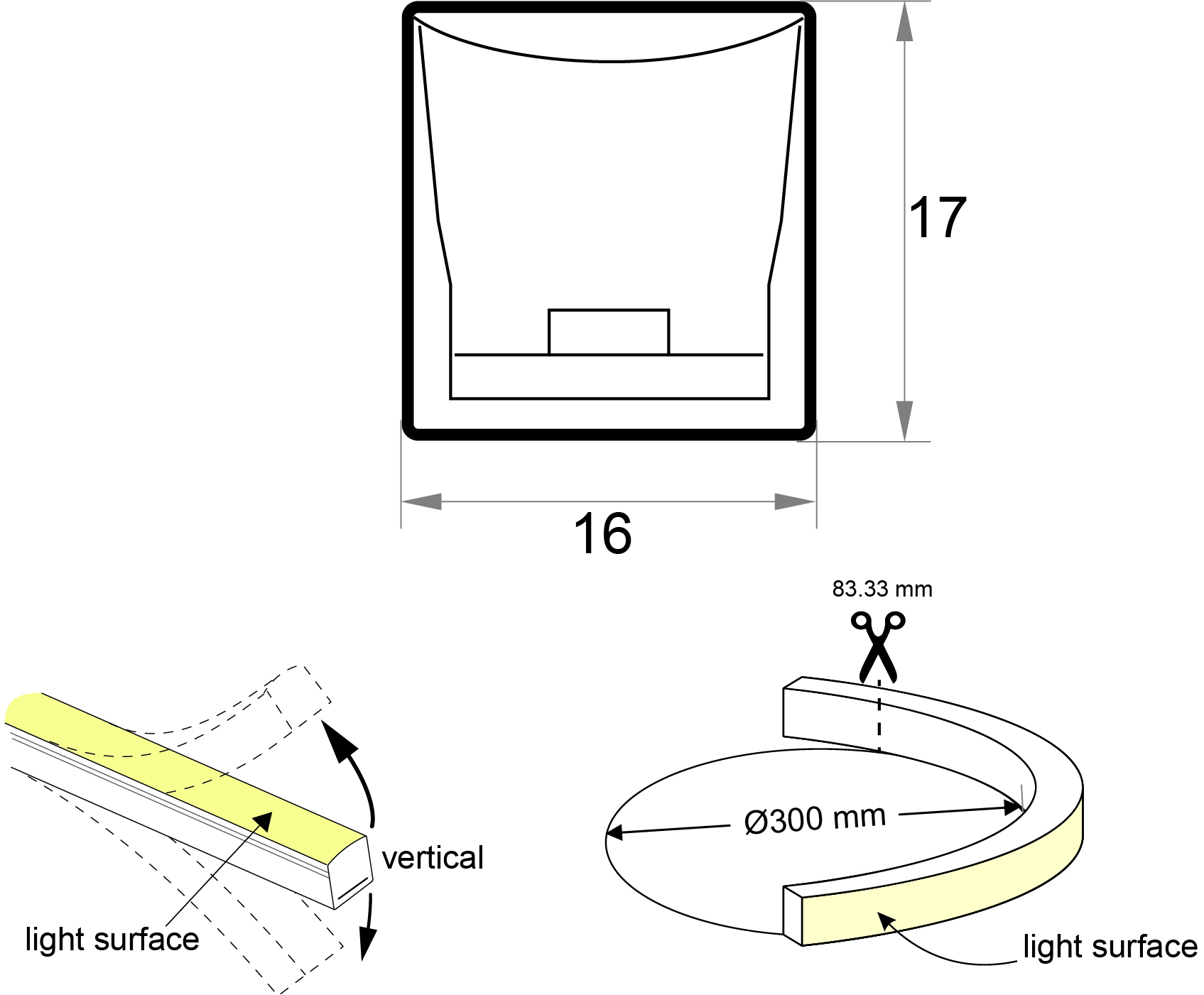

- WxH in mm: 16 x 17
- Temperature range: -20 to +45°C
- Processing temperature: +10 to +45°C
- Maximum length per connection: 7 meters
- bending radius: 150 mm
Technical Data
| BAR code: | 4012094760711 |
|---|---|
| Width: | 16 mm |
| Height: | 17 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 5,36 lm |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 84 |
| Cutting length in mm: | 83,33 mm |
| Power W/m: | 12 |
| Lumen per meter: | 450 |
| Lumen per watt: | 37,5 |
| IP protection rating: | 68 |
| Catalog color code: | weiss |
| Led color code: | RGB |
| Leuchte: | including LED |
| Beam angle: | 160 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| Re skus: | 68345 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | not relevant |
