CE
Disposal instructions according to 2012/19/EU
Parallel connection
Protection class III
REACH
RoHS
UV-resistant
Product number:
S76066

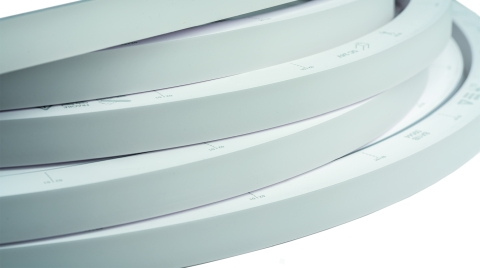

LD S?-?? Flex.LEDStrip,24V,RGB
Product information "LD S?-?? Flex.LEDStrip,24V,RGB"
- Flexible LED Stripe sealed in UV-, chlorine-,
- salt water-, solvent- and heat-resistant special silicone
- for indoor- and outdoor use, IP68
- specially for the sauna area
- cuttable every 125 mm / 7 LEDs
- amount of LEDs per meter: 56
- LED pitch: 17.86 mm
- beam angle: 120°
- CRI: -
- luminous flux per meter: 165 lm
- voltage: 24V DC
- power per meter: 6 W
- lifespan L70B50: >= 36.000 h

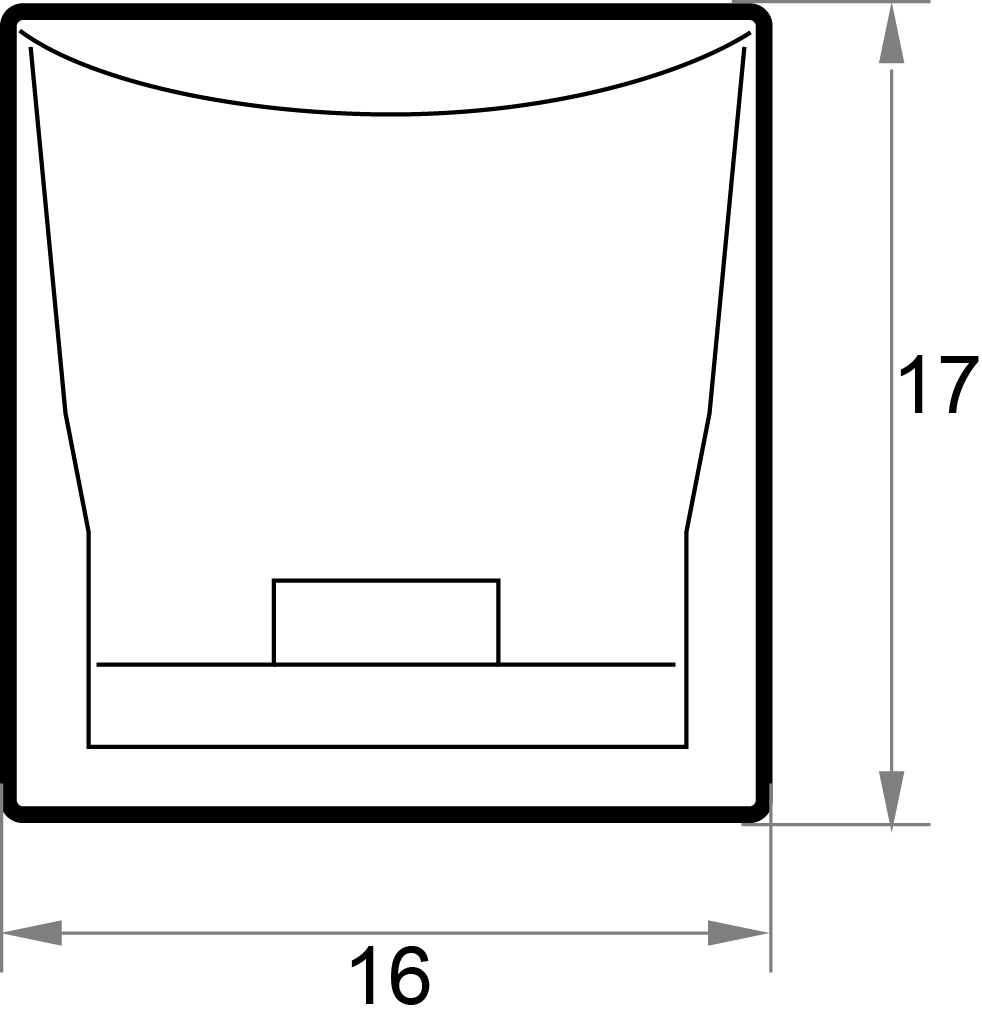

- WxH in mm: 16 x 17
- Temperature range: -40 to +90°C
- Processing temperature: +10 to +90°C
- Maximum length per connection: 10 meter
- min. bending radius horizontal: 150 mm
Technical Data
| BAR code: | 4012094660660 |
|---|---|
| Width: | 16 mm |
| Height: | 17 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 2,95 lm |
| Temperature range: | -40 - 90 |
| LEDs per meter: | 56 |
| Cutting length in mm: | 125 mm |
| Power W/m: | 6 |
| Lumen per meter: | 165 |
| Lumen per watt: | 27,5 |
| IP protection rating: | 68 |
| Catalog color code: | weiss |
| Led color code: | RGB |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | not relevant |
