CE
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
S76657

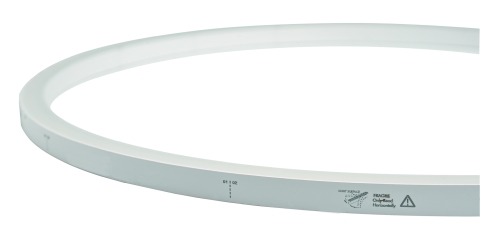

LD S?-?? Flex.LEDStrip,24V,QH3
Product information "LD S?-?? Flex.LEDStrip,24V,QH3"
- Flexible LED-Strip sealed in UV, chlorine, salt water
- and solvent-resistant white silicone
- for indoor- and outdoor use, IP66
- cuttable every 83.33 mm or 12 LED
- Number of LED per metre: 144
- LED Pitch: 6.94 mm
- Beam Angle: 120°
- CRI: > 80
- Luminous flux per meter: 420 lm
- Power per meter: 9 W
- Lifespan L70: >= 36.000 h

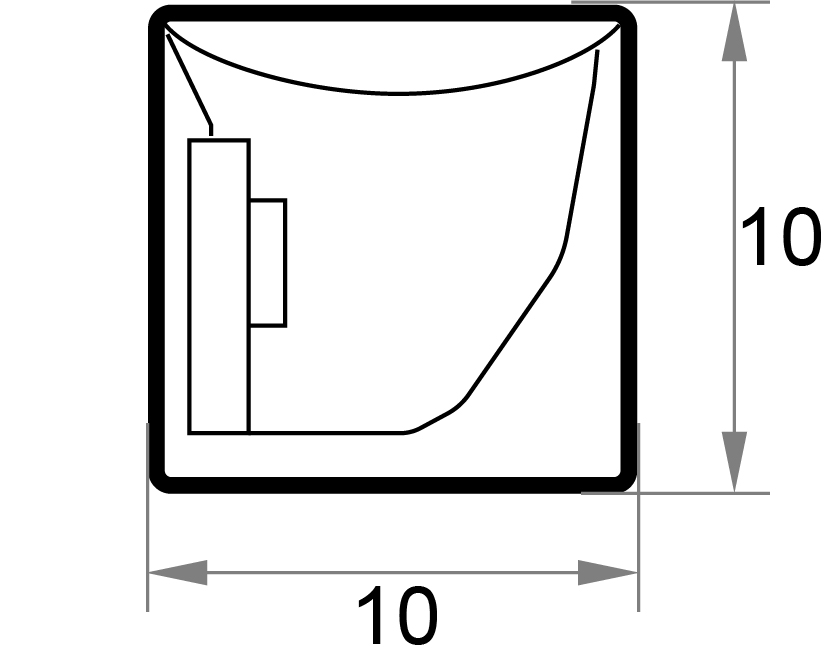

- WxH in mm: 10 x 10
- Temperature range: -40 bis +60°C
- Processing temperature: +10 bis +60°C
- Maximum length per connection: 15 metres
- Bending radius horizontally: 50 mm
Technical Data
| BAR code: | 4012094666570 |
|---|---|
| Width: | 10 mm |
| Height: | 10 mm |
| Unit Code: | meter |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 2,92 lm |
| Temperature range: | -40 - 60 |
| LEDs per meter: | 144 |
| Cutting length in mm: | 83,33 mm |
| Power W/m: | 9 |
| Lumen per meter: | 420 |
| Lumen per watt: | 46,67 |
| IP protection rating: | 66 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
