CE
Disposal instructions according to 2012/19/EU
Light source not interchangeable
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
S83608
LD S?-?? Flex.LEDStrip,24V,NW

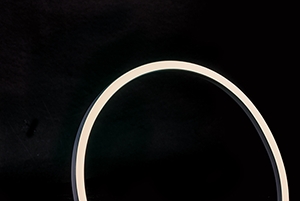

Product information "LD S?-?? Flex.LEDStrip,24V,NW"
- flexible LED Stripe sealed in UV-, chlorine-,
- salt water- and solvent resistant white PVC
- for indoor- and outdoor use
- cuttable every 3,85 cm / 7 LEDs
- amount of LEDs per meter: 182
- LED pitch: 5,5 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter: 567 lm
- power per meter: 12,5 W
- lifetime L70: >= 20.000h
- LxWxH in mm: 1.000 x 10 x 10
- temperature range: -20 to +40°C
- processing temperature: +10 to +40°C
- maximum length per connection: 6 meter
- bending radius: 75 mm
Technical Data
| BAR code: | 4012094736082 |
|---|---|
| Width: | 10 mm |
| Height: | 10 mm |
| Length: | 1000 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 3,12 lm |
| Current: | 521 mA |
| Temperature range: | -20 - 40 |
| LEDs per meter: | 182 |
| Cutting length in mm: | 38,5 mm |
| Power W/m: | 12,5 |
| Lumen per meter: | 567 |
| Lumen per watt: | 45,36 |
| IP protection rating: | 66 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 4000K neutralweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| Re skus: | 68375,83690,83692,86993 |
| Auslaufartikel: | Yes |
| L70: | 20000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
