Product number:
S76588
LD S?-?? Flex.LEDStrip,24V,NW
Product information "LD S?-?? Flex.LEDStrip,24V,NW"

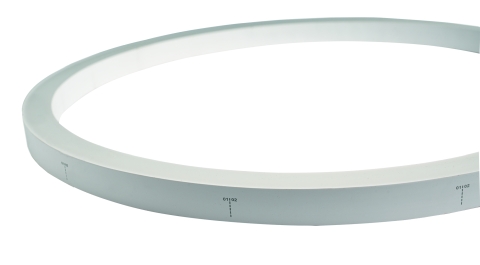

- Flexible LED Stripe sealed in UV-, chlorine-,
- salt water-, solvent- and heat-resistant special silicone
- for indoor- and outdoor use, IP68
- Cuttable every 55.56 cm / 6 LEDs
- Amount of LEDs per meter: 108
- LED pitch: 9.26 mm
- Beam angle: 120°
- CRI: >80
- Luminous flux per meter: 710 lm
- Voltage: 24V DC
- Power per Meter: 15 W
- Lifetime L70: >= 36.000 h

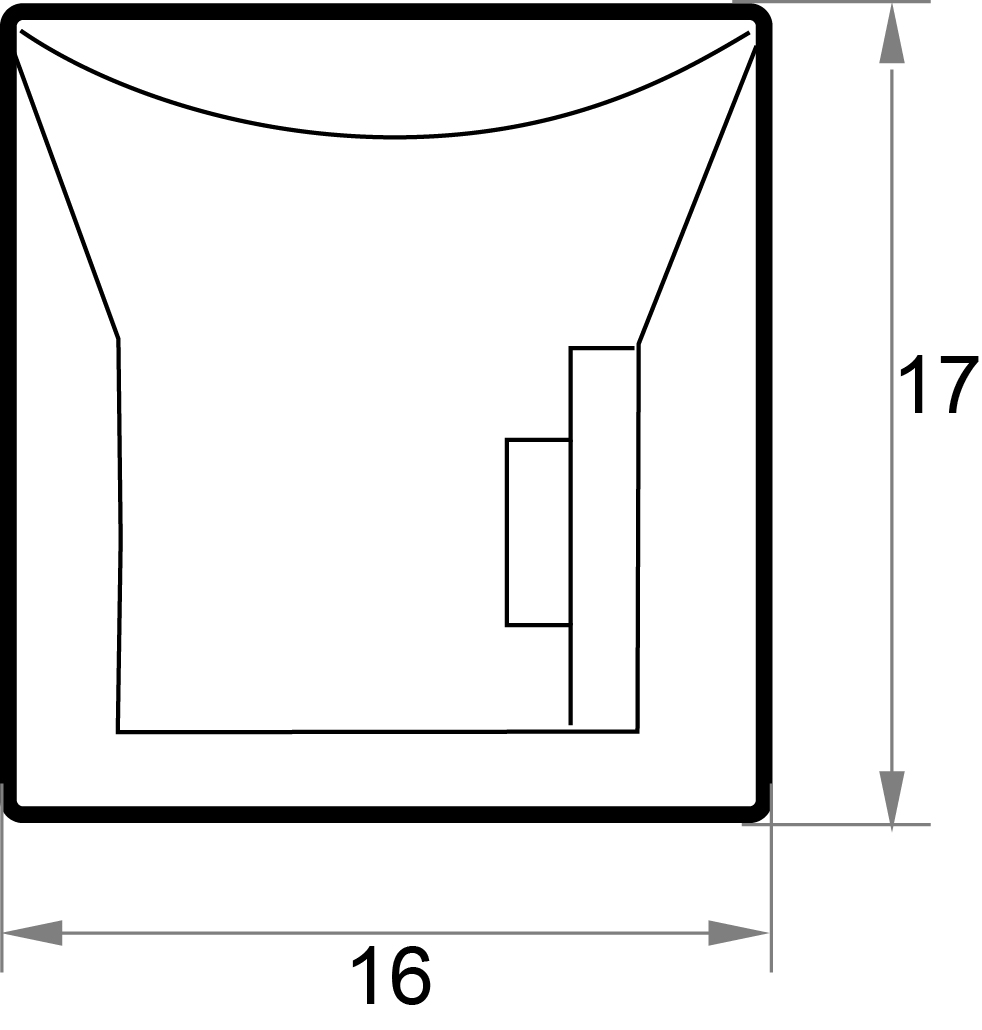

- WxH in mm: 16 x 17
- Temperature range: -40 to +50°C
- Processing temperature: +10 to +50°C
- Maximum length per connection: 10 meter
- Bending radius horizontal: 150 mm
Technical Data
| BAR code: | 4012094665887 |
|---|---|
| Width: | 16 mm |
| Height: | 17 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 6,57 lm |
| Temperature range: | -40 - 50 |
| LEDs per meter: | 108 |
| Cutting length in mm: | 55,56 mm |
| Power W/m: | 15 |
| Lumen per meter: | 710 |
| Lumen per watt: | 47,33 |
| IP protection rating: | 68 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 4000K neutralweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| Re skus: | 68345 |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
