Product number:
S71628
LD S?-?? Flex.LEDStrip,24V,NW
Product information "LD S?-?? Flex.LEDStrip,24V,NW"

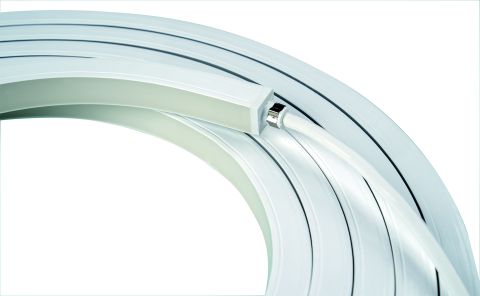

- flexible LED Stripe sealed in UV- and
- saltwater resistant white silicone
- for indoor- and outdoor use, IP65
- cuttable every 50 mm / 7 LEDs
- amount of LEDs per meter: 140
- LED pitch: 7.14 mm
- beam angle: 110°
- CRI: >90
- luminous flux per meter: 660 lm
- power per meter: 13 W
- lifetime L70B50: >= 50,000 h

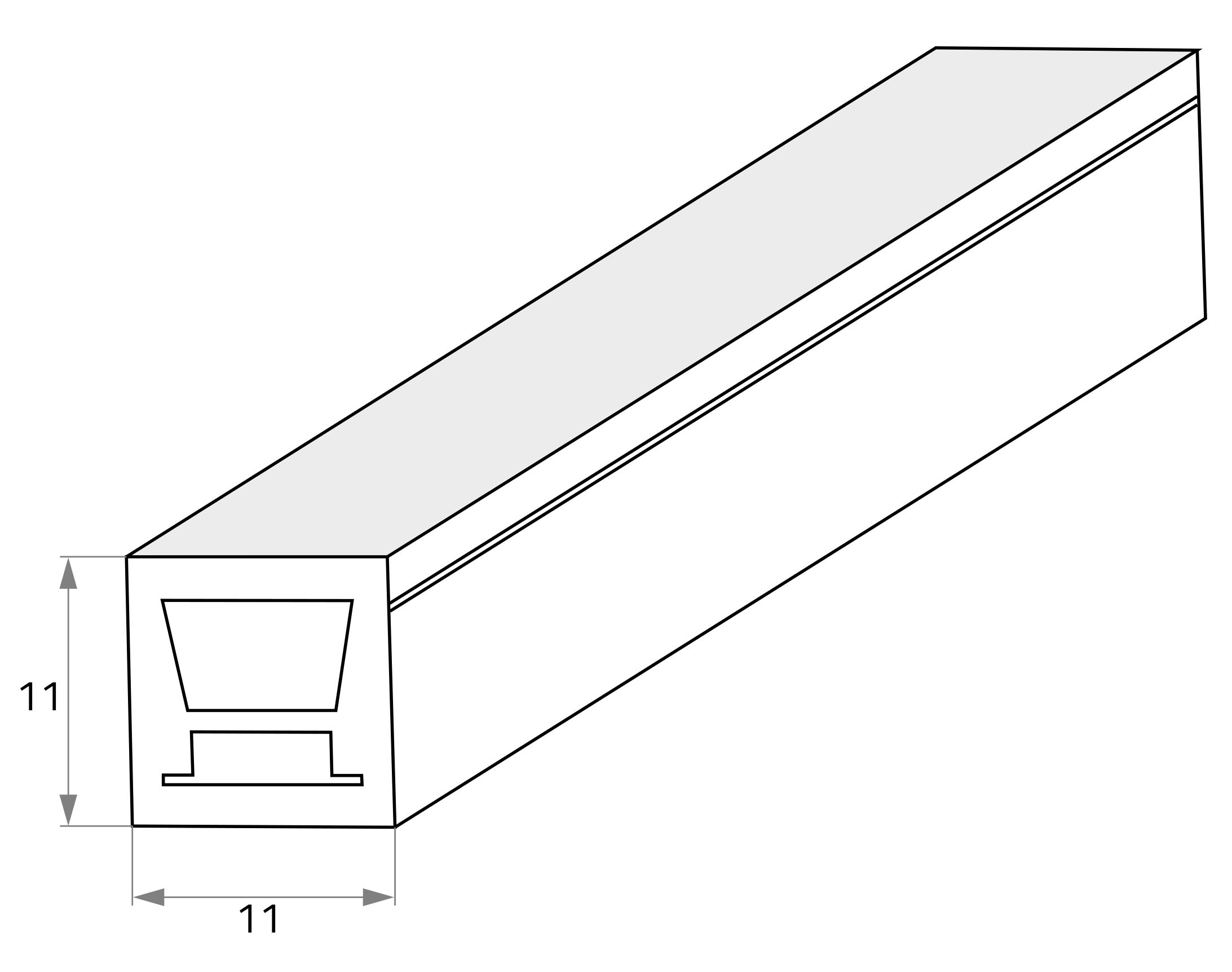

- WxH in mm: 11 x 11
- temperature range: -20 to +45°C
- processing temperature: +10 to +45°C
- maximum length per connection: 5 meter
- bending radius vertical: 55 mm
Technical Data
| BAR code: | 4012094716282 |
|---|---|
| Width: | 11 mm |
| Height: | 11 mm |
| Unit Code: | meter |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 4,71 lm |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 140 |
| Cutting length in mm: | 50 mm |
| Power W/m: | 13 |
| Lumen per meter: | 660 |
| Lumen per watt: | 50,77 |
| IP protection rating: | 65 |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 4000K neutralweiß |
| Leuchte: | including LED |
| Beam angle: | 110 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | containing product |
| Psb: | 0,00 |
