Product number:
S76069

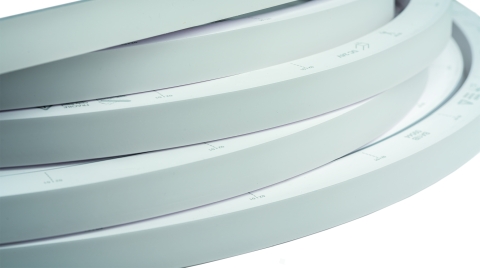

LD S?-?? Flex.LEDStrip,24V,DTW
Product information "LD S?-?? Flex.LEDStrip,24V,DTW"
- Flexible LED Stripe sealed in UV-, chlorine-,
- salt water-, solvent- and heat-resistant special silicone
- for indoor- and outdoor use, IP68
- cuttable every 83.33 mm / 12 LEDs
- amount of LEDs per meter: 144
- LED pitch: 6.94 mm
- beam angle: 120°
- CRI: >80
- light colour: 3000-1800 K Dim To Warm
- luminous flux per meter: 600 lm
- voltage: 24V DC
- power per meter: 12 W
- lifespan L70B50: >= 36,000 h

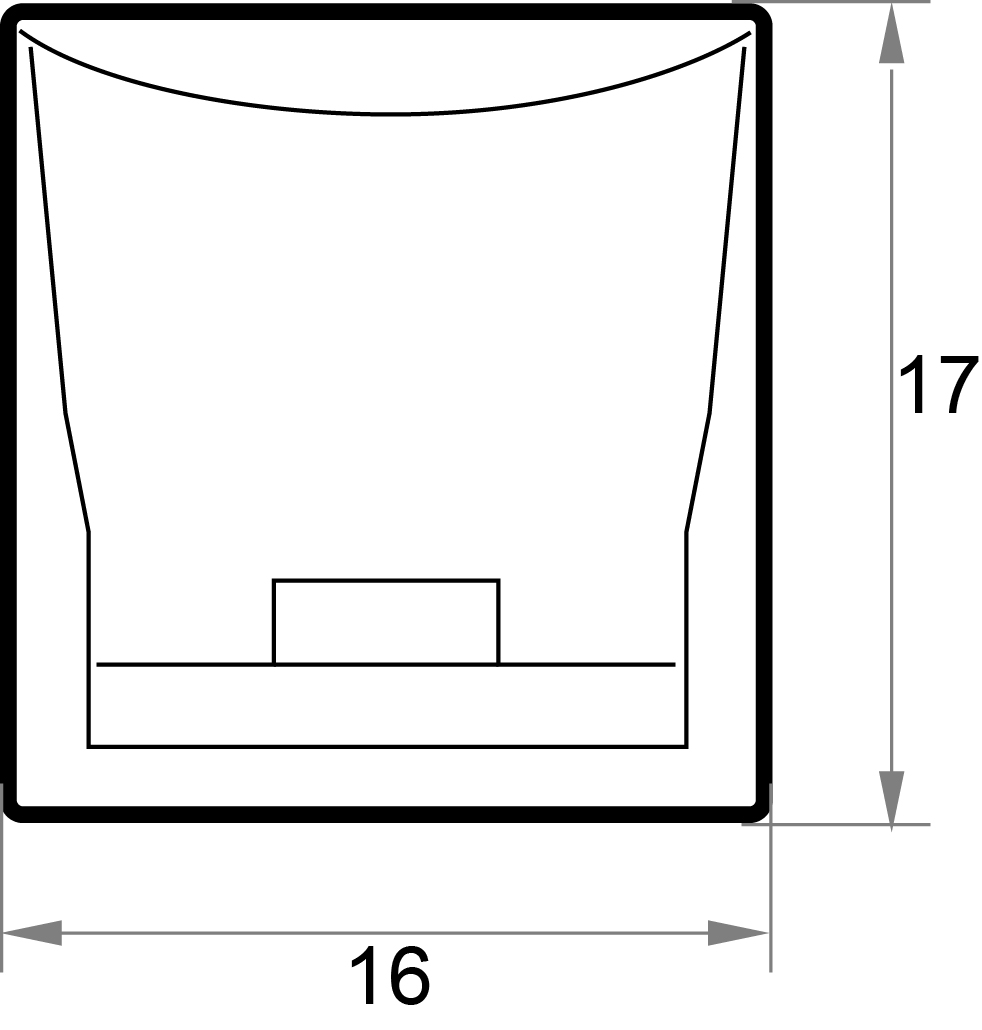

- WxH in mm: 16 x 17
- Temperature range: -40 to +55°C
- Processing temperature: +10 to +55°C
- Maximum length per connection: 15 meter
- min. bending radius vertical: 150 mm
- This product contains a light source of energy efficiency class G.
Technical Data
| BAR code: | 4012094060699 |
|---|---|
| Width: | 16 mm |
| Height: | 17 mm |
| Unit Code: | meter |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 4,17 lm |
| Temperature range: | -40 - 55 |
| LEDs per meter: | 144 |
| Cutting length in mm: | 83,33 mm |
| Power W/m: | 12 |
| Lumen per meter: | 600 |
| Lumen per watt: | 50 |
| IP protection rating: | 68 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | 3000-1800K Dim to Warm |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
| Pno: | 0,00 |
