CE
Parallel connection
Protection class III
REACH
RoHS
UV-resistant
Product number:
S86012
LD S?-?? Flex.LEDStrip,24V,Blau

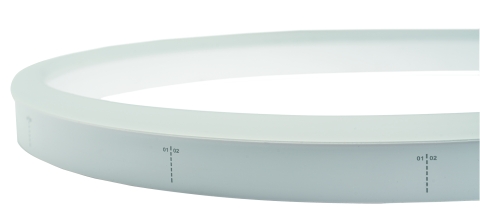

Product information "LD S?-?? Flex.LEDStrip,24V,Blau"
- Flexible LED Stripe sealed in UV-, chlorine-,
- salt water-, solventresistant white PVC
- for indoor- and outdoor use, IP68
- Cuttable every 100 mm / 6 LEDs
- Amount of LEDs per meter: 60
- LED pitch: 16.67 mm
- Beam angle: 120°
- Luminous flux per meter: 80 lm
- Voltage: 24 V DC
- Power per Meter: 12 W
- Lifetime L70: >= 36,000 h
- WxH in mm: 11.5 x 21
- Temperature range: -20 to +45°C
- Processing temperature: +10 to +45°C
- Maximum length per connection: 10 meter
- Bending radius: 60 mm
Technical Data
| BAR code: | 4012094860121 |
|---|---|
| Width: | 11 mm |
| Height: | 29 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 1,33 lm |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 12 |
| Lumen per meter: | 80 |
| Lumen per watt: | 6,67 |
| IP protection rating: | 68 |
| Led color code: | Blau |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | not relevant |
| Psb: | 0,00 |
