CE
Disposal instructions according to 2012/19/EU
Light source not interchangeable
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
S86652

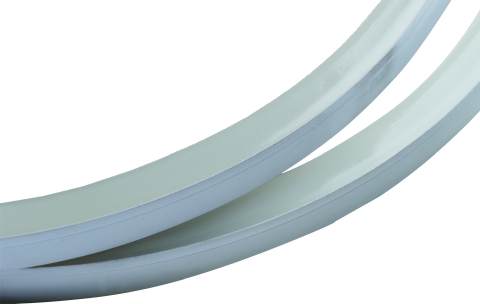

LD S?-?? Flex.LEDStrip,24V,BRZ
Product information "LD S?-?? Flex.LEDStrip,24V,BRZ"
- No extended Text
Technical Data
| BAR code: | 4012094766522 |
|---|---|

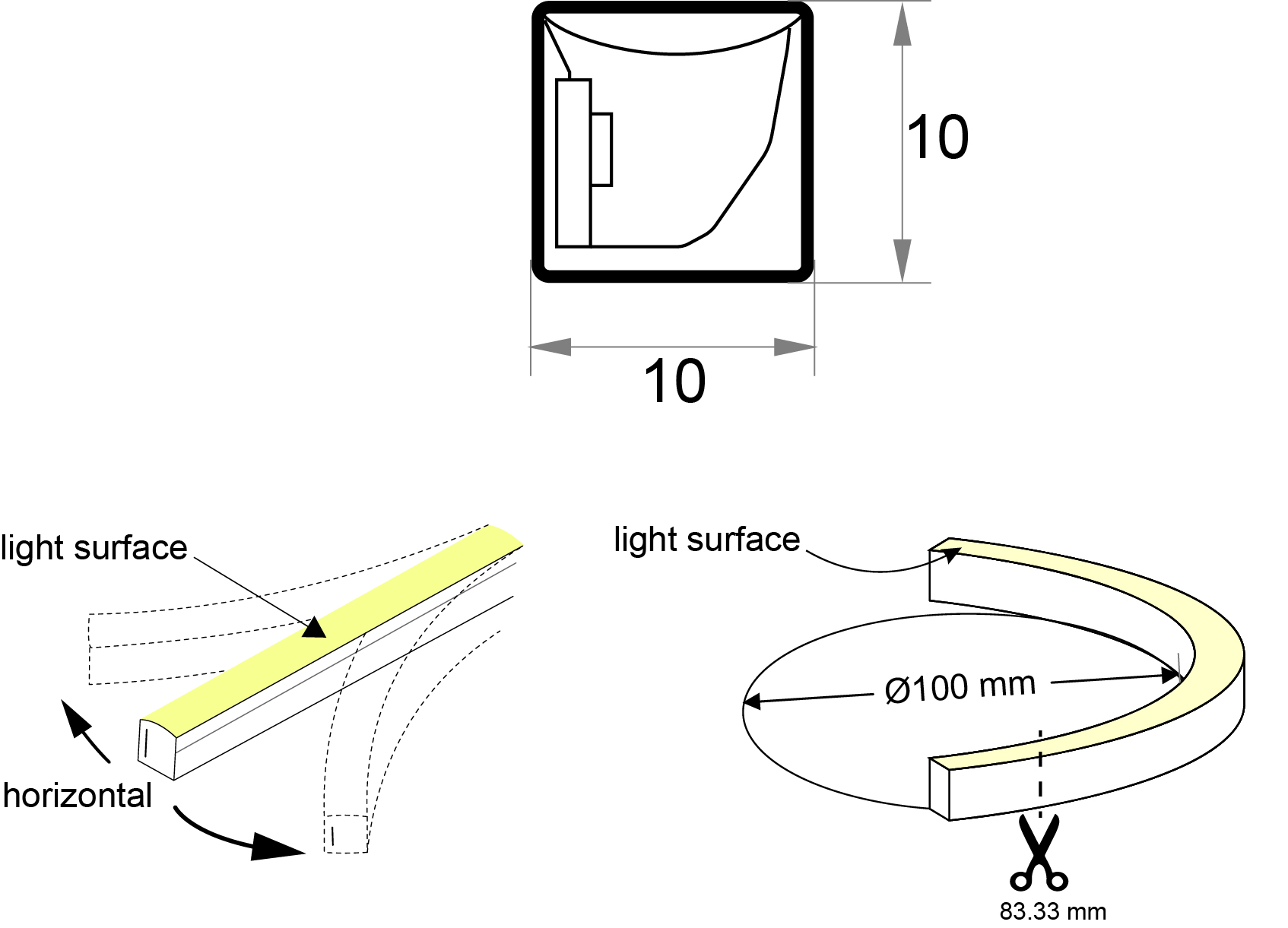

| Width: | 10 mm |
| Height: | 10 mm |
| Unit Code: | meter |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 2,80 lm |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 144 |
| Cutting length in mm: | 83,33 mm |
| Power W/m: | 9 |
| Lumen per meter: | 403 |
| Lumen per watt: | 44,78 |
| IP protection rating: | 66 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 2400K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 160 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| Auslaufartikel: | Yes |
| L70: | 3600 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
