Product number:
S76213
LD S?-?? Flex.LEDStrip,24V,2700K

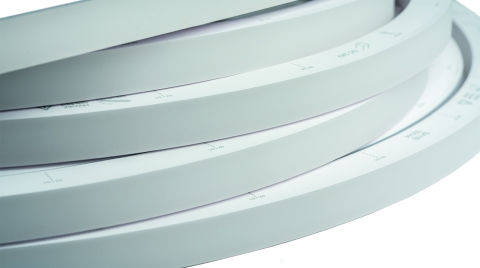

Product information "LD S?-?? Flex.LEDStrip,24V,2700K"
- Flexible LED stripe sealed in UV-, chlorine-,
- salt water- and solvent resistant white silicone
- for indoor and outdoor use, IP68
- each individual segment separately programmable
- and individually controllable
- cuttable every 166.67 mm / 14 LEDs
- amount of LEDs per meter: 84
- IC type: UCS512CN
- LED pitch: 11.9 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter: 844 lm
- power per meter: 15 W
- lifespan L70B50: >= 36,000 h

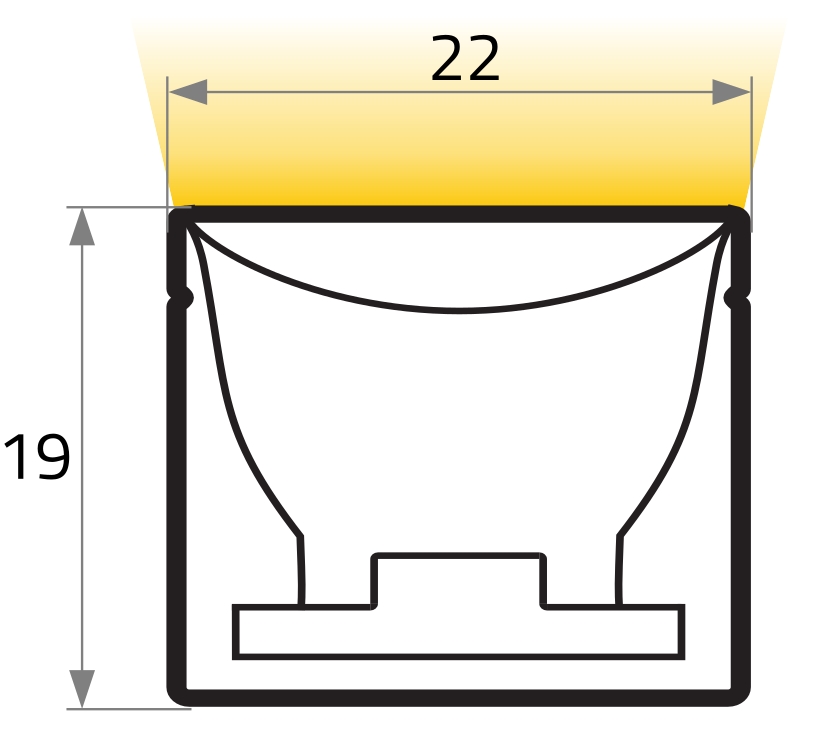

- WxH in mm: 22 x 19
- ambient working temperature: -40 bis +50°C
- ambient installation temperature: +10 to +50°C
- maximum length per connection: 8 meter at static colours
- maximum length per connection: 12 meter at dynamic running light effect
- bending radius vertical: 200 mm
Technical Data
| BAR code: | 4012094062136 |
|---|---|
| Width: | 22 mm |
| Height: | 19 mm |
| Unit Code: | meter |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 0,00 lm |
| Temperature range: | -40 - 50 |
| LEDs per meter: | 84 |
| Cutting length in mm: | 166,67 mm |
| Power W/m: | 15 |
| Lumen per meter: | 844 |
| Lumen per watt: | 56,27 |
| IP protection rating: | 68 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
