Product number:
81145
LD LED Strip,24V,IP54,3000K Zul.0,3M
Product information "LD LED Strip,24V,IP54,3000K Zul.0,3M"
- flexible LED Strip with self adhesive backside,
- for indoor use and wet rooms, IP54

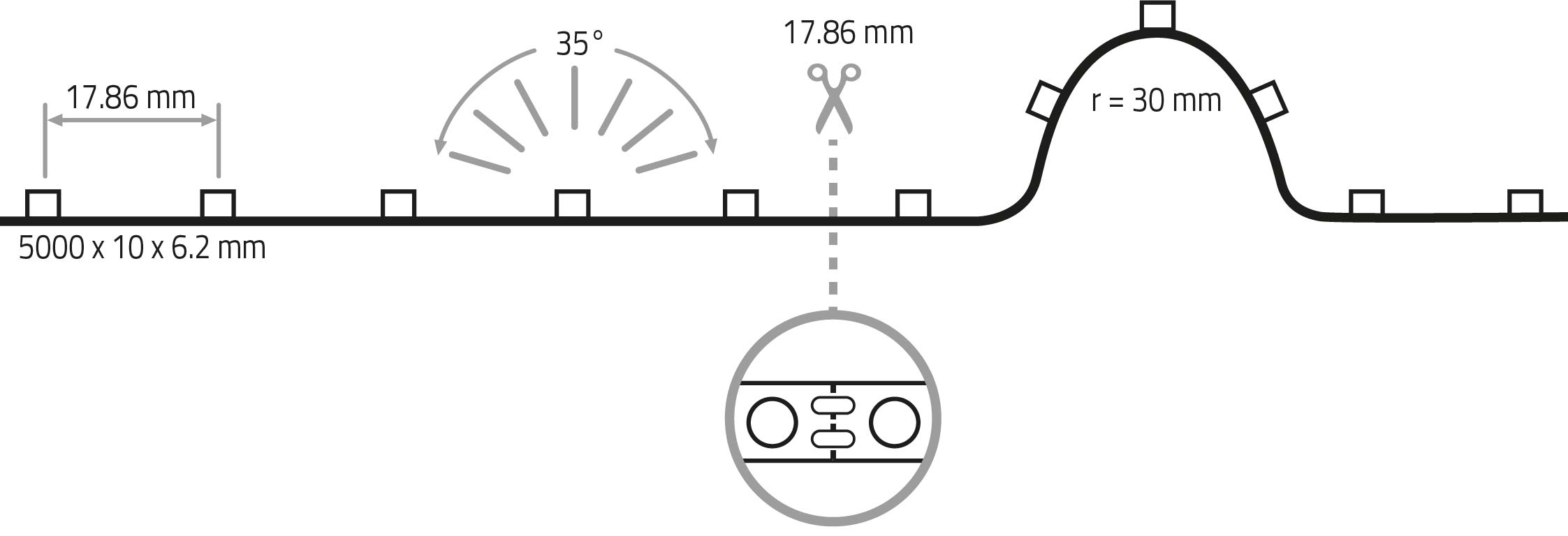

- can be seperated every 17.86 mm or each LED
- number of LEDs: 280
- LED pitch: 17.86 mm
- beam angle: 35°
- CRI: >90
- luminous flux per meter: 1,490 lm
- voltage: 24V DC
- power per meter: 14.4 W
- lifetime L70B50: >40,000 h
- energy efficiency class: E
- LxWxH in mm: 5,000 x 10 x 6.2
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll with 300 mm connection cable
Technical Data
| BAR code: | 4251835711456 |
|---|---|
| Width: | 10 mm |
| Height: | 6 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Lumen per fixture (lm): | 7450 lm |
| Lumen per LED (lm): | 26,61 lm |
| Current: | 3000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 56 |
| Cutting length in mm: | 17,86 mm |
| Power W/m: | 14,4 |
| Lumen per meter: | 1490 |
| Lumen per watt: | 103,47 |
| IP protection rating: | 54 |
| Power: | 72 W |
| Energy efficiency class: | EEK-Label_E |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 35 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 280 |
| LebensdauerL70B50: | 40000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 10000 |
