Product number:
85952

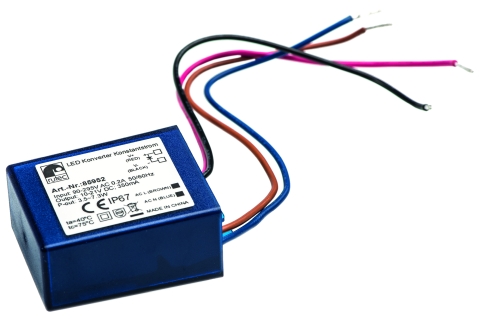

LD LED Konverter 350mA 1,4W-7,4W 10-21V
Product information "LD LED Konverter 350mA 1,4W-7,4W 10-21V"
- rutec LED converter, constant current
- for indoor use, IP67
- Protection class II, CE, RoHS
- Protection against short circuit and overload
- Primary and secondary sided 1 input and output line
- Housing: plastic
- Input voltage: 230V AC 50/60 Hz
- Power: 1.4-7.4 W
- Output current: 350 mA
- Output voltage: 10-21 V DC
- LxWxH in mm: 57 x 41 x 24
- Temperature range: -20 to +40°C
- not dimmable
Technical Data
| BAR code: | 4012094859521 |
|---|---|
| Width: | 41 mm |
| Height: | 24 mm |
| Length: | 57 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Temperature range: | -20 - 40 |
| IP protection rating: | 67 |
| Power: | 1,4-7,4 W |
| Catalog color code: | blau |
| Leuchte: | without |
| Input voltage: | 90-295 |
| Output voltage: | 10-21 |
| Gehaeuse code: | Kunststoff |
| Toleranz: | 7 |
| Re skus: | 88806,88816 |
| Wirkungsgrad Vollast: | 75 |
| Geeignete Lichtquelle: | LED |
| Ecodesign: | seperate control gear |
| Psb: | 0,00 |
| Pno: | 0,07 |
