CE
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
REACH
RoHS
Series connection
Product number:
R57881WWOK

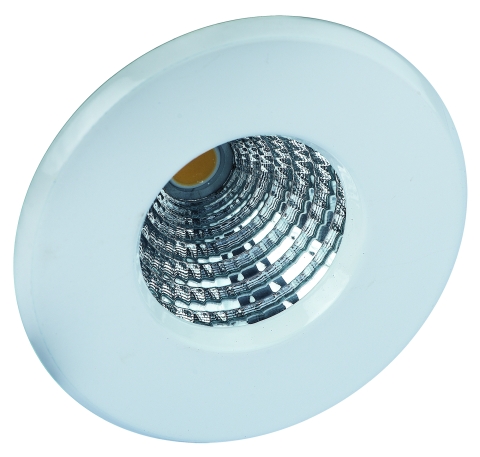

LD LED Einbaustr. 6,5W IP 44 o.Konverter
Product information "LD LED Einbaustr. 6,5W IP 44 o.Konverter"
- for indoor use, IP40
- Housing: steel sheet (black), leaf springs
- Cover panel: die-cast aluminum, clear protective glass
- Housing colour: white matt
- Beam angle: 24°
- Power: 6,5 W
- Light colour: 3000 K
- Luminous flux: 454 lm
- CRI: >80
- Lifespan L70B50: >= 50.000 h
- Input current: 350 mA
- Protection class: III

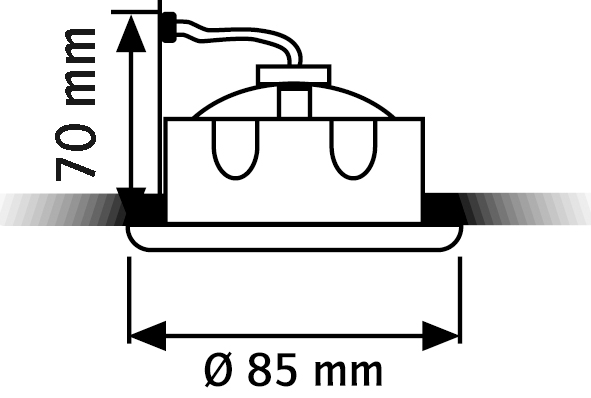

- Installation depth: 70 mm
- Ceiling cut-out: 72 mm
- Outer diameter: 85 mm
- energy efficiency class: G
Technical Data
| BAR code: | 4012094278810 |
|---|---|
| Height: | 62 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Installation diameter: | 72 mm |
| Outer diameter: | 82 mm |
| Lumen per fixture (lm): | 454 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Installation depth: | 70 mm |
| Temperature range: | -20 - 50 |
| Lumen per watt: | 69,84 |
| IP protection rating: | 44 |
| Power: | 6,5 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 80 |
| Catalog color code: | weiss matt |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 24 Grad ° |
| Gehaeuse code: | Aluminium |
| Auslaufartikel: | Yes |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
