CE
Ceiling cutout round
Control gear interchangeable
DALI2
Disposal instructions according to 2012/19/EU
Interseroh
Light source interchangeable
Only suitable for indoor installations
Parallel connection
Protection class II
REACH
RoHS
Product number:
ALU509214WW-DA-50

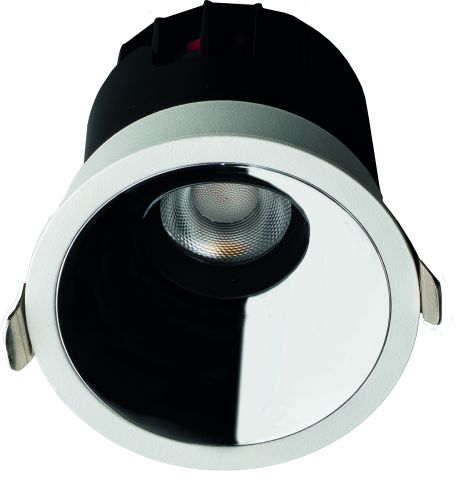

LD JUPITER M 12W 3000K 50° white/chrome D82 DALI
Product information "LD JUPITER M 12W 3000K 50° white/chrome D82 DALI"
- Downlight with narrow bezel, offset light source, rotates 355° and tilts 35°
- colour bezel: white
- colour reflector: chrome
- power: 12 W
- color temperature: 3000 K
- luminous flux: 1182 lm
- beam angle: 50°
- CRI: >90
- L70B50 lifespan: >= 105.000 h
- input voltage: 220-240 V AC 50/60 Hz, 180-280 V DC
- includes DALI-2 and push-dim constant-current converter
- protection class II, IP20

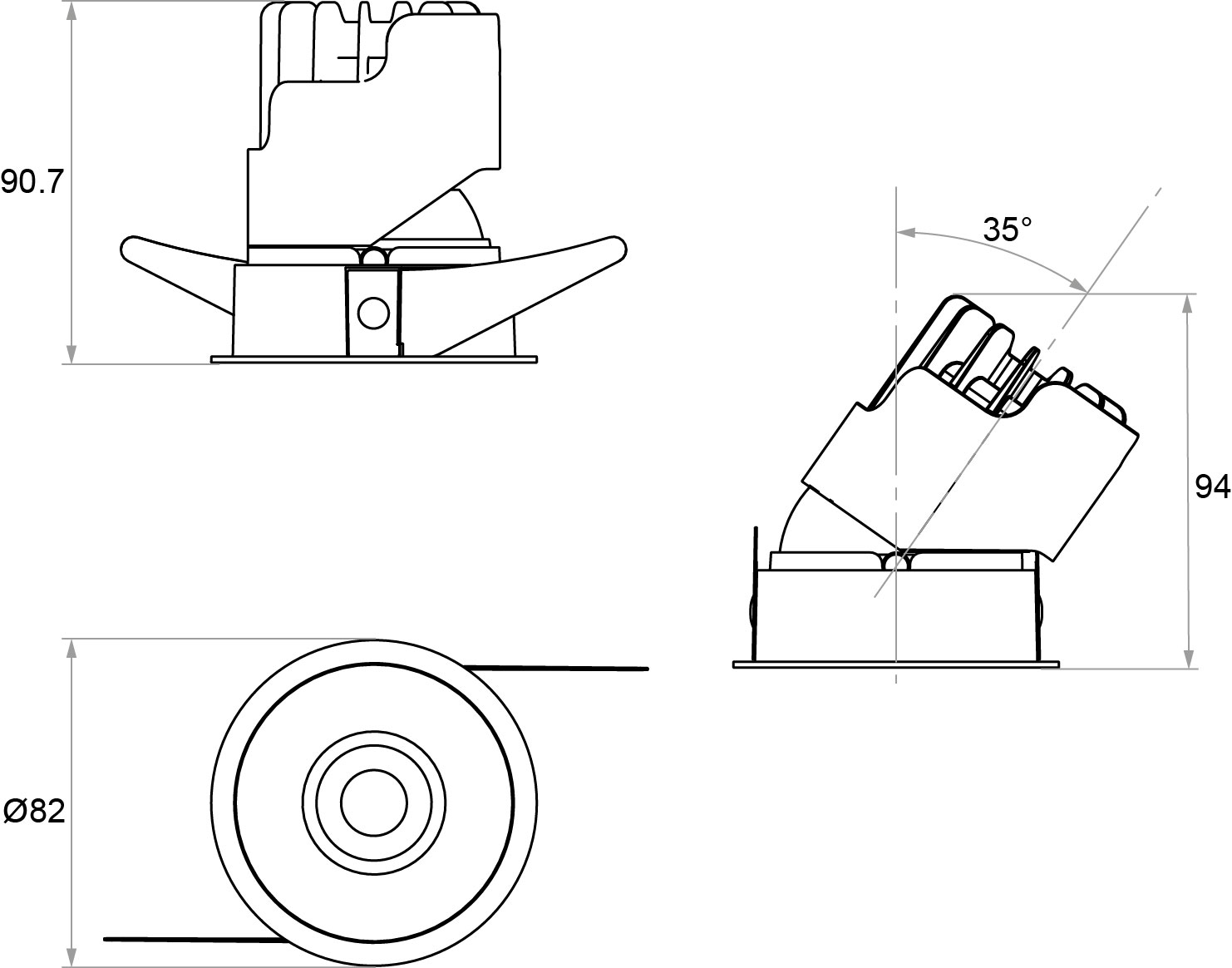

- outer diameter: 82 mm
- installation diameter: 75 mm
- height: 94 mm
- This product contains a light source of energy efficiency class C
Technical Data
| BAR code: | 4251835704359 |
|---|---|
| Height: | 94 mm |
| Unit Code: | piece |
| Installation diameter: | 75 mm |
| Outer diameter: | 82 mm |
| Lumen per fixture (lm): | 1182 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Temperature range: | -20 - 45 |
| Lumen per watt: | 98,5 |
| IP protection rating: | 20 |
| Power: | 12 W |
| CRI: | 90 |
| Catalog color code: | chrom |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 50 Grad ° |
| Voltage: | 220-240 V |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| LebensdauerL70B50: | 105000 |
| Ecodesign: | containing product |
