Product number:
81758

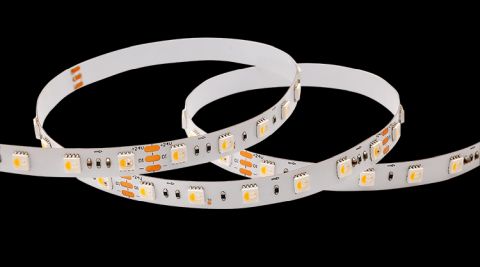

LD Flexible LED Leiste,Innen RGBW Int.
Product information "LD Flexible LED Leiste,Innen RGBW Int."
- with self adhesive backside,
- for indoor use, IP20
- Each individual segment separately programmable
- and individually controllable
- programmable pixels per meter: 10
- every 100 mm or 6 LEDs cuttable
- amount of LEDs: 300
- IC type: SK6812RGBX
- LED pitch: 16.67 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter: 260 lm
- operation voltage: 24V DC
- power per meter: 12 W
- lifespan L70B50: >= 50.000 h
- energy efficiency class: G
- LxWxH in mm: 5.000 x 10 x 2
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll
Technical Data
| BAR code: | 4012094817583 |
|---|---|
| Width: | 10 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 1500 lm |
| Lumen per LED (lm): | 5,00 lm |
| Current: | 3000 mA |
| Temperature range: | -20 - 45 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 12 |
| Lumen per meter: | 300 |
| Lumen per watt: | 25 |
| IP protection rating: | 20 |
| Power: | 60 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 80 |
| Led color code: | RGBW 2700K |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 300 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
| Psb: | 0,0 |
