Product number:
81477
LD Flexible LED Leiste,Innen RGBW-2700K
Product information "LD Flexible LED Leiste,Innen RGBW-2700K"
- flexible LED Strip with self adhesive backside,
- for indoor use, IP20
- for direct control via DMX without separate controller

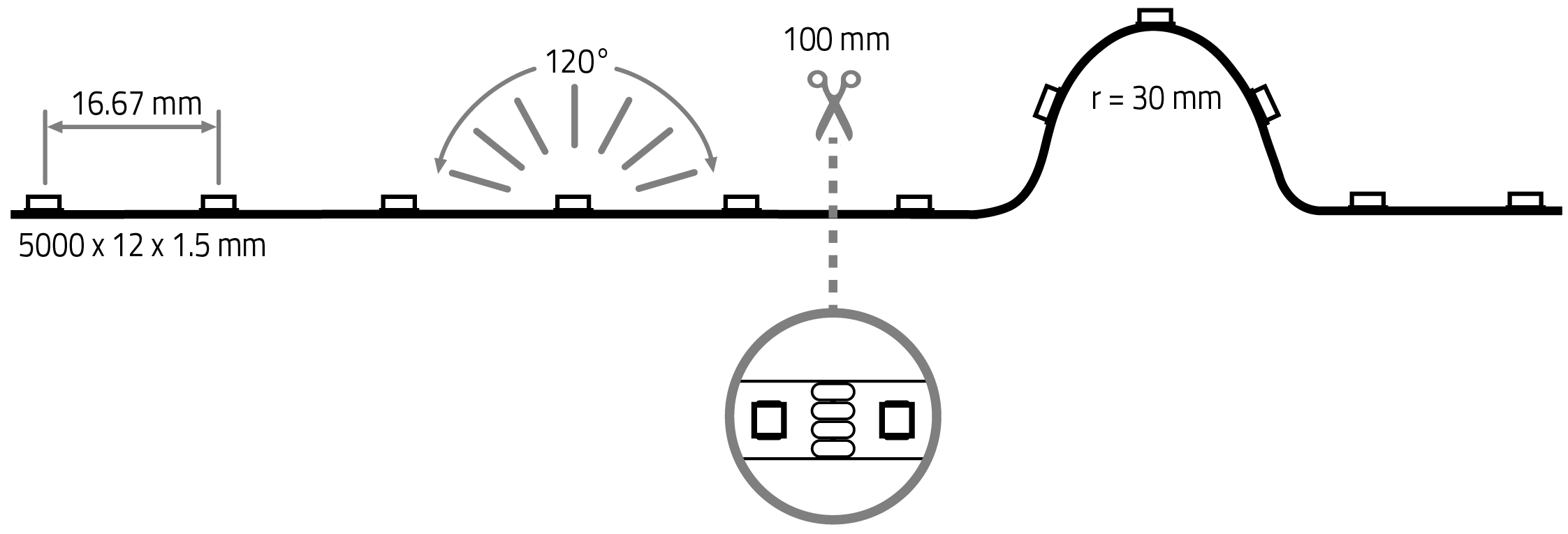

- can be seperated every 100 mm or 6 LEDs
- number of LEDs: 300
- IC type: SM18511PS
- LED pitch: 16.67 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter: 408 lm
- voltage: 24V DC
- power per meter: 14.9 W
- lifetime L70B50: >= 60,000 h
- LxWxH in mm: 5,000 x 12 x 1.5
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll
Technical Data
| BAR code: | 4012094814773 |
|---|---|
| Width: | 12 mm |
| Height: | 1 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 2040 lm |
| Lumen per LED (lm): | 6,80 lm |
| Current: | 3104 mA |
| Temperature range: | -20 - 65 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 14,9 |
| Lumen per meter: | 408 |
| Lumen per watt: | 27,38 |
| IP protection rating: | 20 |
| Power: | 74,5 W |
| CRI: | 80 |
| Led color code: | RGBW 2700K |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 300 |
| LebensdauerL70B50: | 60000 |
| Ecodesign: | not assigned |
