CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
REACH
RoHS
Product number:
81475

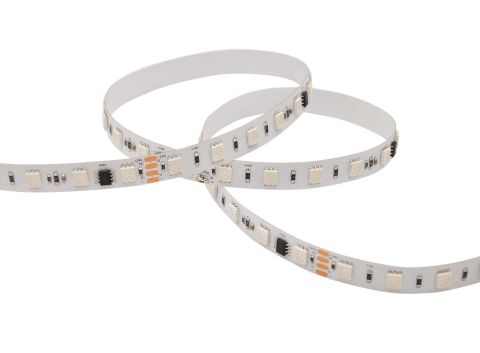

LD Flexible LED Leiste,Innen RGB
Product information "LD Flexible LED Leiste,Innen RGB"
- flexible LED Strip with self adhesive backside,
- for indoor use, IP20
- Each individual segment separately programmable
- and individually controllable

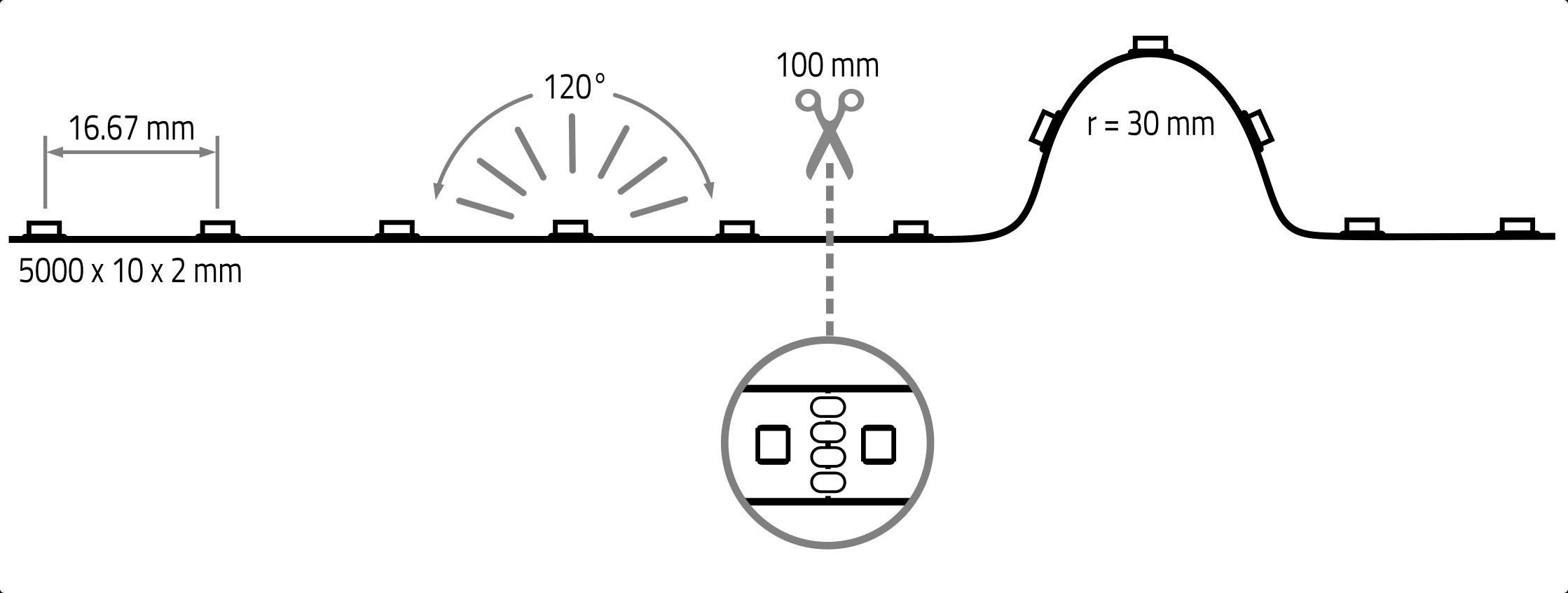

- can be seperated every 100 mm or 6 LEDs
- number of LEDs: 300
- IC type: UCS512B3
- LED pitch: 16.67 mm
- beam angle: 120°
- CRI: -
- luminous flux per meter: 350 lm
- Voltage: 24V DC
- power per meter: 14.4 W
- lifetime L70: >= 50,000 h
- LxWxH in mm: 5,000 x 10 x 2
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll
Technical Data
| BAR code: | 4012094814759 |
|---|---|
| Width: | 10 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 1750 lm |
| Lumen per LED (lm): | 5,83 lm |
| Current: | 3000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 14,4 |
| Lumen per meter: | 350 |
| Lumen per watt: | 24,31 |
| IP protection rating: | 20 |
| Power: | 72 W |
| Led color code: | RGB |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 300 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | not relevant |
